NSH-3410P is an 8-port 10/100/1000 PoE+ downlink, and 2-port GbE multi-rate SFP uplink an managed commercial switch designed for plug & play indoor applications for surveillance and internet access points. This PoE+ switch reduces costs by eliminating the need for multiple power outlets to power each individual powered device (PD) at distances up to 100 meters. All PSE (power sourcing equipment) and LAN ports use auto-negotiation technology to discover compatible devices without extra installation requirements. The switch offers various in-built traffic optimization and network performance features to prioritize important data packets, prevent the loss of data during communication, and stable transmission with Storm Control and QoS features. This device complies with cybersecurity standards to safeguard the network from vulnerabilities and protect your assets. Designed to work in office environments with air conditioning systems it operates at temperatures between 0℃~40℃ (0°F~104°F).
PoE Powering
125W PoE power budget for various plug-n-play PoE devices.
Efficient L2 Features
IGMP (Internet Group Management Protocol) Snooping and VLAN features for network flow management.
Redundant and Resilient Network
RSTP (Rapid Spanning Tree Protocol) and LACP (Link Aggregation Control Protocol) for seamless transmission within the network.
Intelligent PoE+ Functions
Allocation of power to various ports on hourly or weekly schedule to enable or disable connected devices.
Power Delay Functionality
Power Delay feature to safeguard devices during huge power fluctuation due to sudden activation of all ports.
Efficient Network Monitoring
SNMP v1/v2c traffic analysis, monitoring, and management.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.3ad
Link Aggregation
IEEE 802.3af
Power over Ethernet
IEEE 802.3at
Power over Ethernet Plus
IEEE 802.3az
Energy Efficient Ethernet (EEE)
IEEE 802.1AB
LLDP
IEEE 802.1D
STP
IEEE 802.3w
RSTP
IEEE 802.1p
Class of Service
IEEE 802.1Q
VLAN Tagging
IEEE 802.1X
Port-based Network Access Control

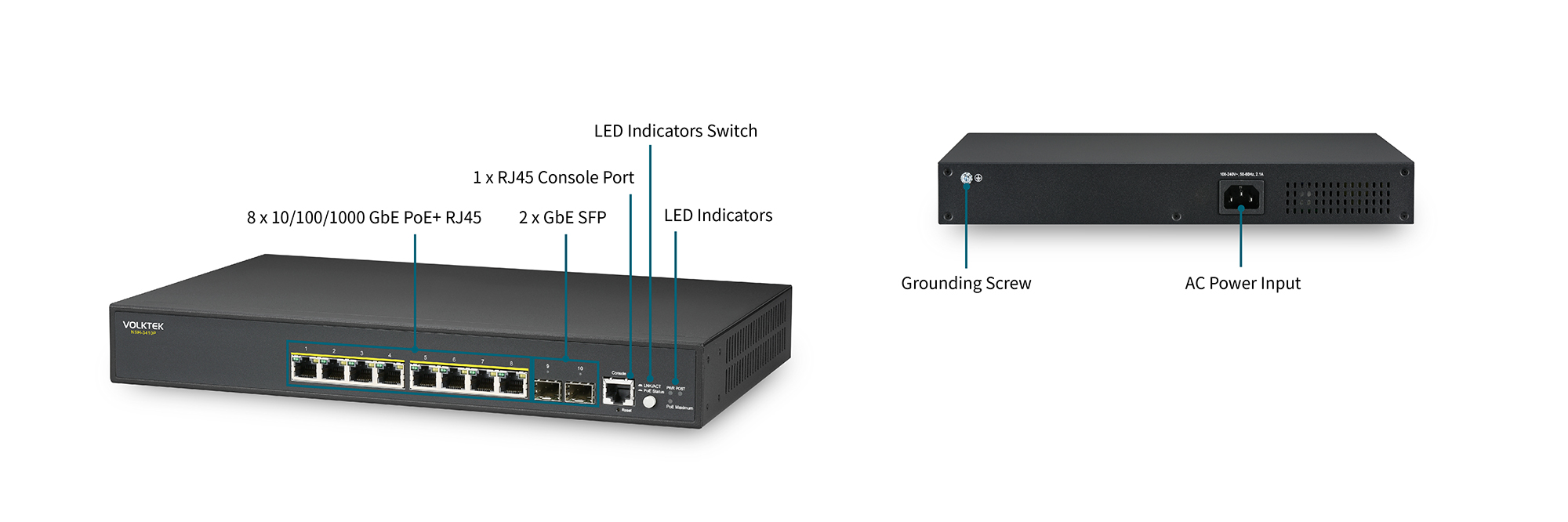

Interface
Ports
8 x 10/100/1000BASE-T (PoE RJ45)
2 x Gigabit SFP
1 x RJ45 Console Port
LED Indicator
PWR, POST, PoE Max, 10/100 (Amber) &
1000 (Green), LNK/ACT (Blinking) & PoE (Amber)
Power
Input Voltage
100-240 VAC, 50-60Hz
Connection
DC Jack
Power Consumption
8W (System Only)
PoE Power Budget
125W
Mechanical and Environment
Rack Space
13"
Form Factor
Rackmount
Operating Temperature
0ºC~40ºC (32°F~104°F)
Storage Temperature
-40ºC~70º (-40°F~158°F)
Operating Humidity
10%~90%(non-condensing)
Storage Humidity
10%~90%(non-condensing)

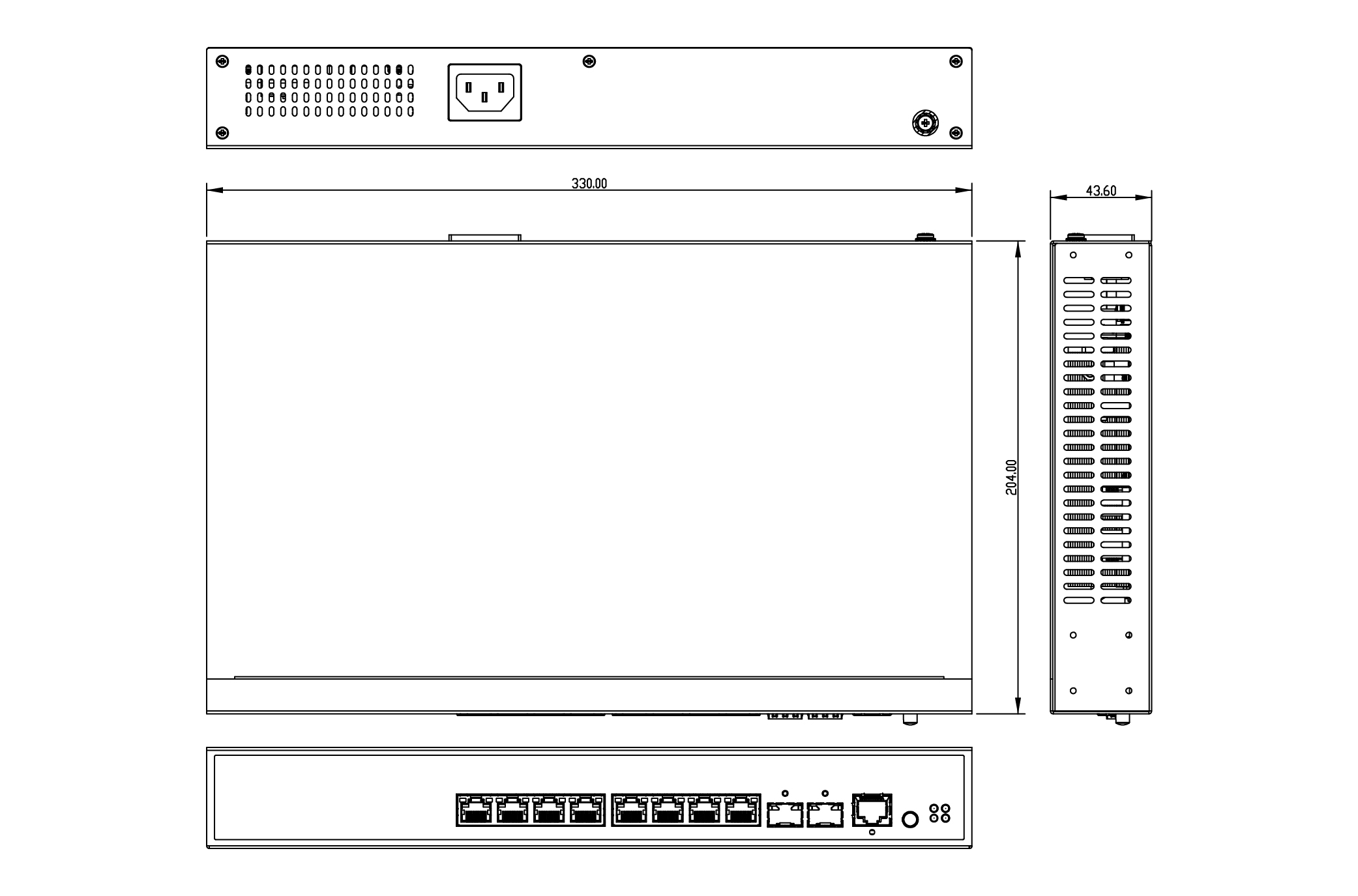

Dimension (WxHxD)
330 x 43.6 x 204 mm (13 x 1.7 x 8 in)
Weight
2400 g (5.29 lb)
Ordering Information
| Model | Description |
|---|---|
| NSH-3410P | L2+ Managed 8 x 10/100/1000 PoE+ & 2 x GbE SFP Switch |
*Specifications subject to change without prior notice.
