IEN-8608PA
Product Highlights
  • 8 x 10/100/1000 PoE+ ports - 30 Watts max. power/port
  • 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files
  • Uses Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations
  • Operating temperature -40℃~75℃ (-40°F~167°F) and IP30 aluminum housing
  • USB
  • -40°C-75°C
  • 30W
  • DIN Rail
  • IP Code30
  • PoE+
  • PoE Scheduling
  • Redundant Power
  • Topology Map
Overview

IEN-8608PA is a high-performance managed 8-port 10/100/1000 GbE PoE+ downlink switch mainly designed for surveillance applications with remote and fast management. This industrial grade managed PoE+ switch features 8-port PSE (power sourcing equipment) ports to control all remotely powered devices (PDs) with the help of automated features controlled from the web browser. The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port, designed to save configuration files, save system log files, and upgrade firmware, reduces network downtime and operational costs. This device protects the network following safe cybersecurity standards. The network topology map feature allows visualizing the network of connected devices. The device uses network rate limitation and QoS to improve traffic and prioritize data. It offers quick recovery features to resume the network when needed.


Designed to work in industrial demanding environments, it’s enclosed in an IP30 aluminum case to protect the device from tools and hazards and high thermal conductivity for applications at temperatures ranging -40℃~75℃ (-40°F~167°F). To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issues alerts if power fails.



Features

Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.


High-Power Budget for PoE Devices
30W per port powering over the same cable used for network traffics.


Intelligent PoE+ Functions
Allocation of power to various ports on hourly or weekly schedule to enable or disable connected devices.


Redundant Power System
Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.


Efficient Network Monitoring and Management
SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.


Bandwidth management to prevent network malfunction
QoS (Quality of Service) mechanisms for priority assignment and network traffic control.


Redundant Ring for Fast Recovery of Surveillance System
Xpress Ring for detection and recovery of link failure in milliseconds.

Specifications

Standards

IEEE 802.3

10BASE-T

IEEE 802.3u

100BASE-TX

IEEE 802.3ab

1000BASE-T

IEEE 802.3

Nway Auto-negotiation

IEEE 802.3x

Flow Control

IEEE 802.3ad

Link Aggregation

IEEE 802.3af

Power over Ethernet

IEEE 802.3at

Power over Ethernet Plus

IEEE 802.3az

Energy Efficient Ethernet (EEE)

IEEE 802.1AB

LLDP

IEEE 802.1ad

QinQ

IEEE 802.1D

STP

IEEE 802.1w

RSTP

IEEE 802.1s

MSTP

IEEE 802.1p

Class of Service

IEEE 802.1Q

VLAN Tagging

IEEE 802.1X

Port Authentication

IEEE 1588v2

PTP

Interface

Ports

8 x 10/100/1000BASE-T (PoE RJ45)

1 x RJ45 Console Port

1 x USB Port

DIP Switch

Primary/Redundant Power Voltage (PWR, RPS) and Drop Alarm (ALM) setting

LED Panel

PWR, RPS, ALM, POST, PoE, 1000, LNK/ACT

Power

Input Voltage

Primary inputs: 48V~57V DC

Redundant inputs: 48V~57V DC

Connection

Teminal Block

Power Consumption

System: 15W

PoE Power Budget: 240W

Alarm Relay

One relay output, 1A @ 24V DC

Mechanical and Environment

Housing

Aluminum (IP30 Protection)

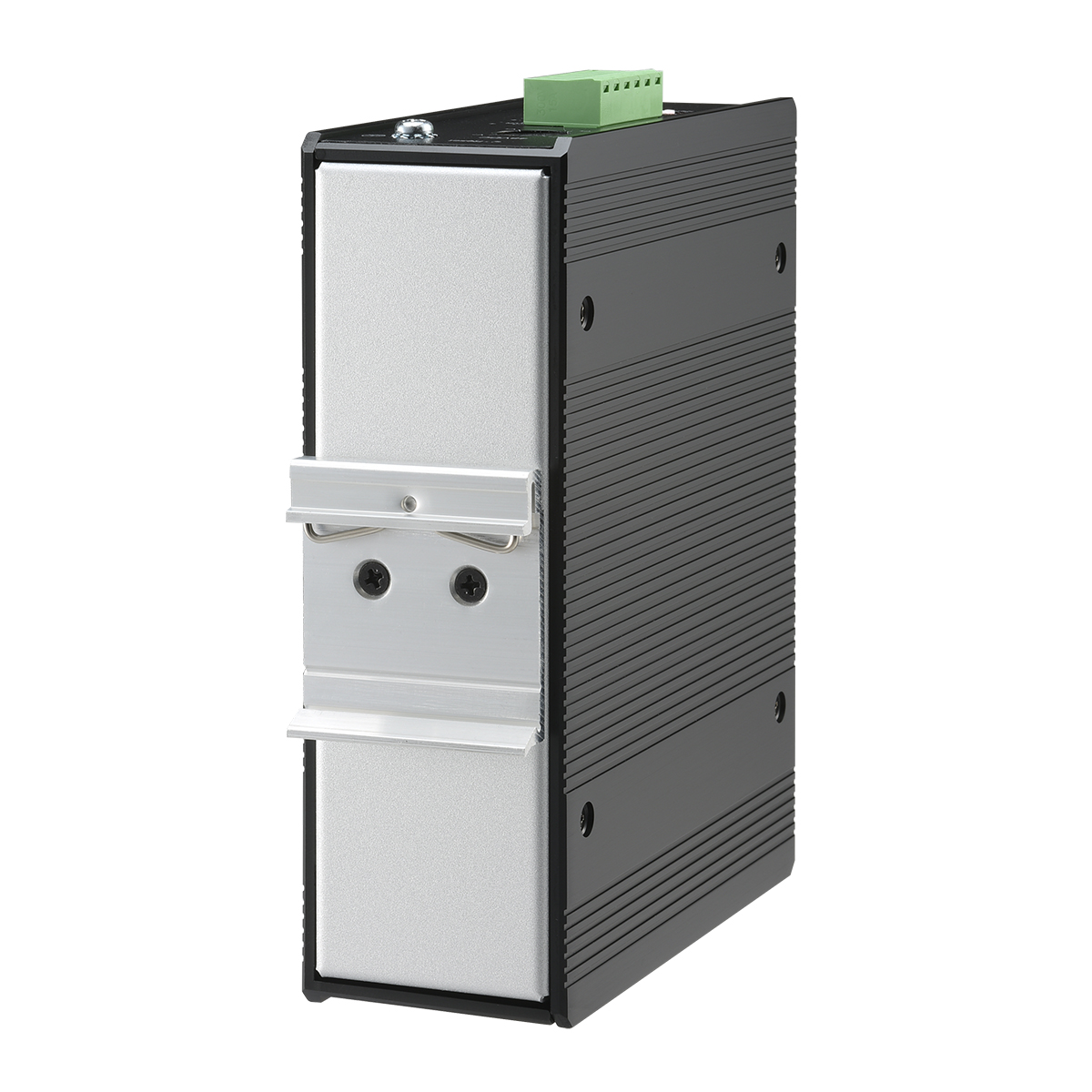

Mounting

DIN-Rail

Operating Temperature

-40°C~75°C (-40°F~167°F)

Storage Temperature

-40°C~85°C (-40°F~185°F)

Operating Humidity

5 to 95% RH (non-condensing)

Storage Humidity

5 to 95% RH (non-condensing)

Weight

935 g (2.1 lb)

Dimension (WxHxD)

50 x 162 x 120 mm (1.97 x 6.36 x 4.72 in)



Ordering Information

Model Description
IEN-8608PA L2+ Managed 8 x 10/100/1000 PoE+ Switch



*Specifications subject to change without prior notice.
