Hawkeye 9005-24GP2GS
Product Highlights
  • 24 PoE+ PSE ports, high port density, with smart control of PDs like IP Cameras, WAPs and VoIP Phones
  • 2 x FX/GbE multi-rate SFP uplink ports for long-distance connectivity
  • Ideal for connectivity in commercial properties and perimeter security applications
  • Fanless design for silent operation also avoids the accumulation of debris in the device
  • Flexible power input (AC or DC) based on users’ preference with varying PoE requirements
  • Operating temperatures -40ºC to 75ºC (-40ºF~167ºF) / -10ºC to 60ºC (14ºF~140ºF) / 0ºC to 50ºC (32ºF~122ºF) available on request
  • 0°C-50°C
  • -10°C-60°C
  • -40°C-75°C
  • Console port
  • Fanless
  • IGMP
  • PoE+
  • PoE Scheduling
  • VLAN
  • WEB
  • Topology Map
  • ROHS CE FC
Overview

Hawkeye 9005 is a 24-port, 10/100/1000BASE-T PoE+ downlink, 2-port FX/GbE multi-rate SFP uplink managed high-port density mainly designed for indoor building surveillance applications without air conditioning, for more convenient, reduced, and inexpensive storage. This high-port density PoE+ switch manages all remote powered devices (PDs) centrally and smartly. The flexible power input of this device (AC or DC) gives space to varying PoE requirements to supply enough power to all connected PDs in large networks, and the plug-and-play feature allows to easily solve by hand connection errors without technical intervention. The multi-rate SFP ports are used to deliver long-distance fiber connectivity to the control center and for the ring and cascading connections. With a passive cooling system, this fanless switch works silently and supports temperatures for industrial, hardened, and commercial environments. The accumulation of debris is avoided, a common concern in fan-integrated devices. This switch is built with industrial-grade components, enclosed in IP30 aluminum to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, at varying temperatures for various types of environments.

Features



Connects 24 Devices in one Interface
PoE Applications: Smart Surveillance and Wireless Access Points Compliant with Type 1 and Type 2 PoE (IEEE 802.3 at) this switch offers up to 30W per port for energy-efficient applications. The switch allows simple “plug-n-play” for PDs to interact with devices as soon as they are connected. This device is a high-port density switch with 24 ports to feed PDs for surveillance systems that cover complete floors.




Manages Remote PDs from the Control Room
The switch management interface uses PD control features, like PD-alive check and PoE scheduling, to control remote devices from a central location.

  • PD alive Check - check the live active status of the device and reboots devices when needed, reducing expensive trips to remote locations to save valuable time.
  • PD scheduling - Ethernet switches can schedule the time they supply power to PDs to reduce power consumption and allocate enough power to important applications to save operational costs.


Shielded against Cyberattacks
By securing the switch with a log-in password, only authorized users are allowed to access and configure the device. To increase security, the device complies with cybersecurity standards by using security protocols like TACACS+ (Terminal Access Controller Access-Control System Plus), RMON (Remote Network Monitoring) and protects from network intrusion and data leakage.




Loop-Free and Quick Recovery
Factory processes are time-sensitive and need to avoid at all costs the abrupt interruption of a system caused by loops. This device is equipped with ring protocols such as RSTP and ERPS to provide automatic backup paths to ensure loop-free transmission and quick recovery in sub-milliseconds when an active link fails.




Network at Glance with a Smart Topology Map
For easy problem finding and troubleshooting, a bird-eye view of the network gives OT and IT users a comprehensive understanding. The Ethernet switch uses smart technology to discover third-party devices, their interface, and link path status in a tri-color code (green, amber, and red). Furthermore, users can set up the map with customized icons and background images.




Protective Hardware Monitoring Features
Fiber transmission in industrial environments faces conditions that may impact the performance of the device negatively. To protect the interface the switch uses features like DDMI, to monitor values such as temperature, voltage, TX bias, TX power, and RX power to protect fiber transmission.




Resistant to Extreme Environments
The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to extreme temperatures (-40°C~75°C), and resistance to interference makes this device infallible in demanding industrial environments around multiple types of machinery.




Specifications

Standards

IEEE 802.3

10BASE-T

IEEE 802.3u

100BASE-TX

IEEE 802.3ab

1000BASE-T

IEEE 802.3u

100BASE-FX

IEEE 802.3z

1000BASE-SX/LX

IEEE 802.3

Nway Auto-negotiation

IEEE 802.3x

Flow Control

IEEE 802.1ad

Link Aggregation

IEEE 802.3af

Power over Ethernet

IEEE 802.3at

Power over Ethernet Plus

IEEE 802.3az

Energy Efficient Ethernet

IEEE 802.1ad

QinQ

IEEE 802.1D

STP

IEEE 802.1w

RSTP

IEEE 802.1p

Class of Service

IEEE 802.1Q

VLAN Tagging

IEEE 802.1X

Port Authentication

IEEE 802.1AB

LLDP

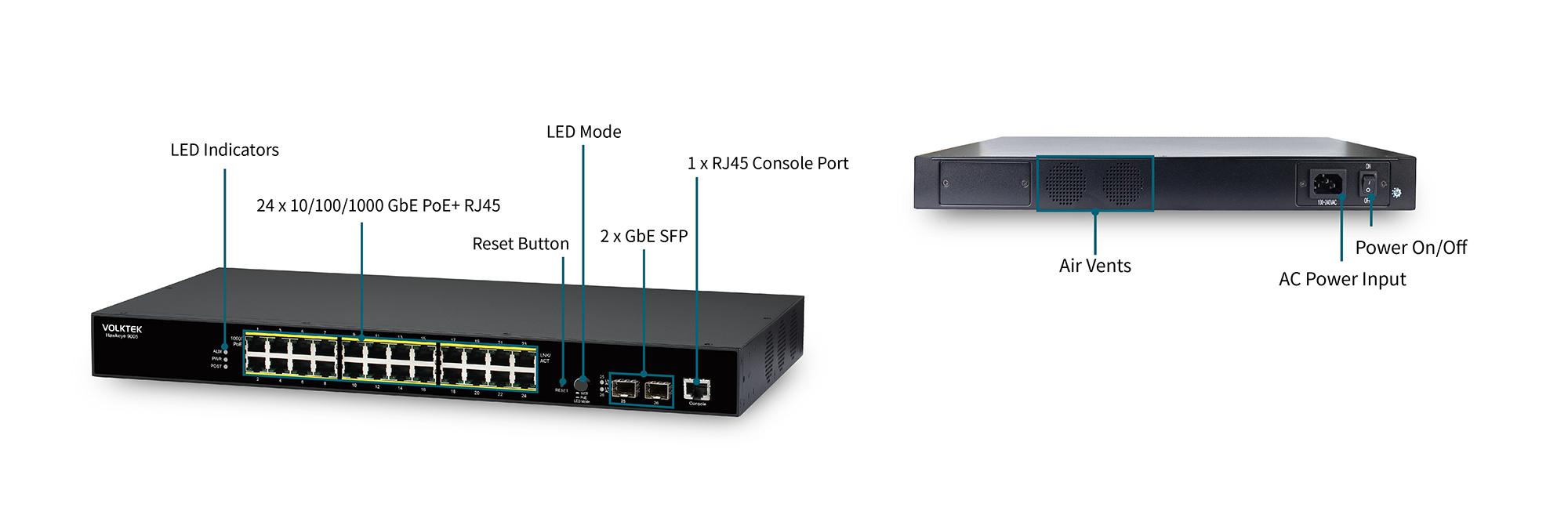

Interface

Ports

24 x 10/100/1000BASE-T (PoE RJ45)

2 x FX/GbE SFP

1 x RJ45 Console Port

Power

Input Voltage

9005-AC-C/9005-AC-H: 100~240VAC, 50/60Hz

9005-DC-I: 48~57VDC

Power Consumption

20W (System Only)

PoE Power Budget

9005-AC-C version:

220~240V AC 330Watt @ 50ºC (122ºF)

Derating to 280Watt @ 60ºC (140ºF)

PoE Power Budget

9005-AC-H version:

100~127V AC 260Watt @ 50ºC (122ºF)

Derating to 240Watt @ 60ºC (140ºF)

PoE Power Budget

9005-DC-I version:

48~57V DC 685Watt @ 75ºC (167ºF)

Mechanical and Environment

Rack Space

19"

Form Factor

Rackmount / DIN Rail

FAN

Fanless

Altitude

2000 m (6561.68 ft)

Operating Temperature

9005-AC-C: 0ºC to 50ºC (32ºF~122ºF)

9005-AC-H: -10ºC to 60ºC (14ºF~140ºF)

9005-DC-I: -40ºC to 75ºC (-40ºF~167ºF)

Storage Temperature

-40ºC~85ºC (-40°F~185°F)

Operating Humidity

5% to 95% (non-condensing)

Storage Humidity

5% to 95% (non-condensing)

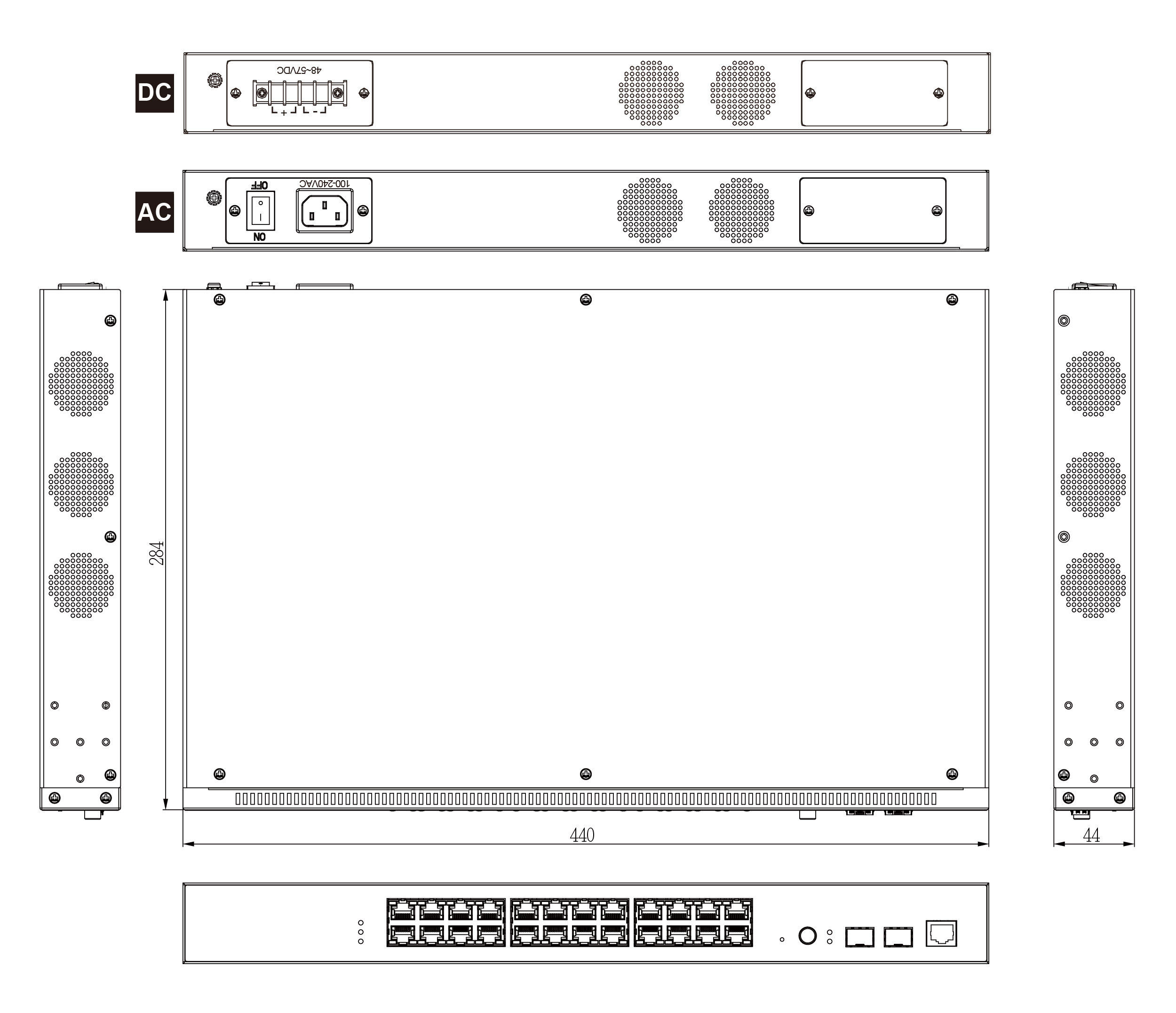

Dimension (W x H x D)

440 x 44 x 284 mm (17.3 x 1.73 x 11.2 in)

Weight

4000 g (8.8 lb)



Ordering Information

Model Description
Hawkeye 9005-AC-C Managed 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch, Internal AC power supply, 50°C (122°F)
Hawkeye 9005-AC-H Managed 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Industrial Switch, Internal AC power supply, 60°C (140°F)
Hawkeye 9005-DC-I Managed 24 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Industrial Switch, DC power input, 75°C (158°F)



*Specifications subject to change without prior notice.
