SEN-9648P-24V-SS
Product Highlights
  • 8 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port
  • 4 x GbE SFP uplink ports for long-distance connectivity to control center and cascading
  • 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files
  • It prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets
  • Wide input power range (24V to 57V) suits different environments
  • EEE 1613 and IEC 61850-3 certifications, communication standards for safe and reliable substation operations
  • Operating temperatures-40℃~75℃ (-40°F~167°F) and IP30 Aluminum housing
  • USB
  • -40°C-75°C
  • 30W
  • DIN Rail
  • IP Code30
  • PoE+
  • PoE Scheduling
  • Substation
Overview

SEN-9648-24V-SS is an 8-port 10/100/1000 PoE+ downlink and 4-port GbE SFP downlink managed industrial grade switch designed to operate in substation applications with high interference. This PoE+ switch features up to 8-port PSE (power sourcing equipment) ports with plug and play feature to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches and the control center.

The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port, designed to save configuration files, save system log files, and upgrade firmware, reduces network downtime and operational costs. The switch offers various in-built traffic optimization and network performance features to prioritize industrial applications, prevent the loss of data during communication, and assure a stable transmission. The switch includes a topology map compatible with third-party devices to monitor the network. This device complies with cybersecurity standards to safeguard the network from vulnerabilities and protect your assets.

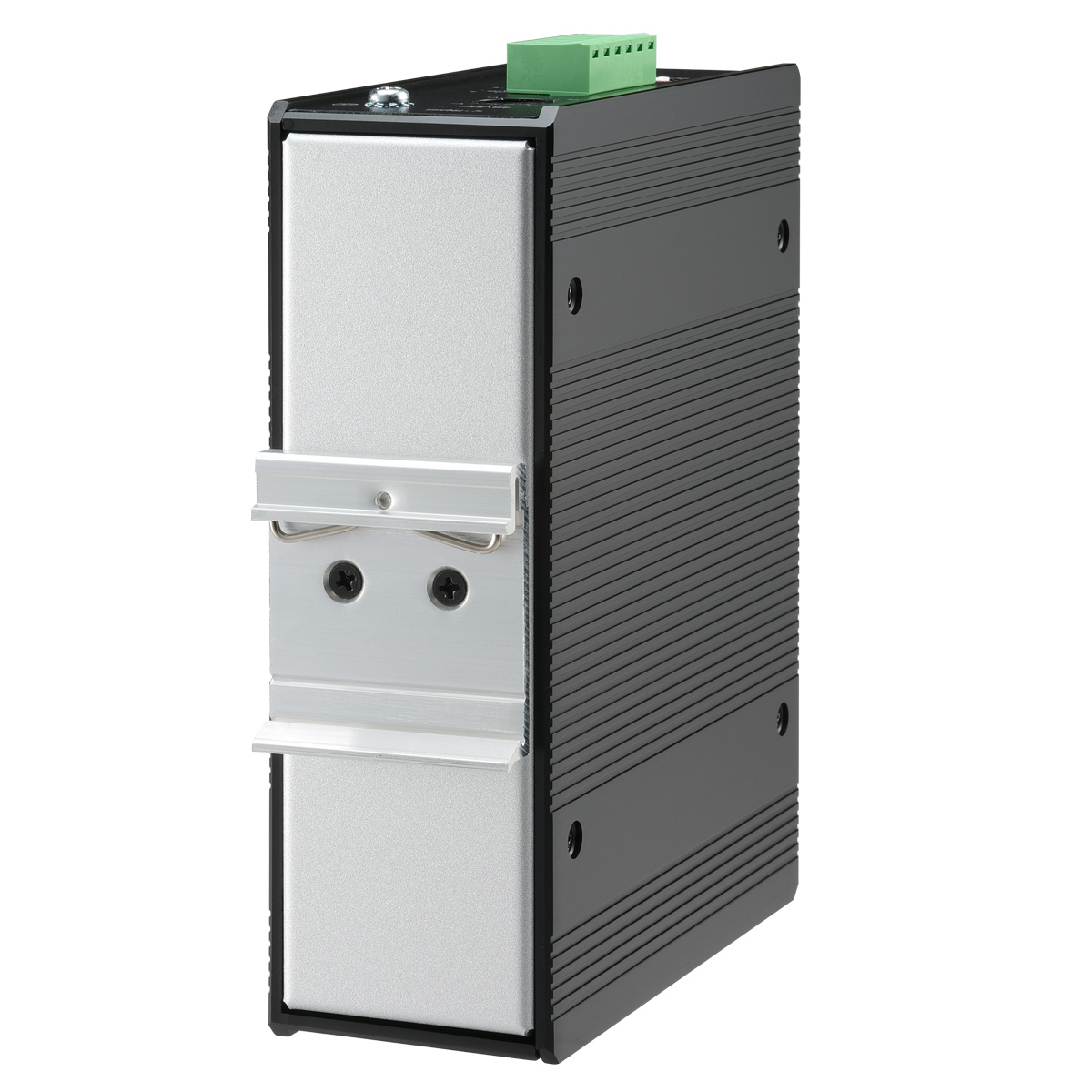

This switch is built with industrial grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits demanding environments.

Features

Redundant Power System
Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.


Innovative Power Boost Technology
24V to 57V DC power boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices.


High-Power Budget for PoE Devices
Up to 30W per port (IEEE 802.3af/at) powering to PoE+ devices.

Specifications

Standards

IEEE 802.3

10BASE-T

IEEE 802.3u

100BASE-TX

IEEE 802.3ab

1000BASE-T

IEEE 802.3z

1000BASE-SX/LX

IEEE 802.3

Nway Auto-negotiation

IEEE 802.3x

Flow Control

IEEE 802.3ad

Link Aggregation

IEEE 802.3af

Power over Ethernet

IEEE 802.3at

Power over Ethernet Plus

IEEE 802.3az

Energy Efficient Ethernet (EEE)

IEEE 802.1AB

LLDP

IEEE 802.1ad

QinQ

IEEE 802.1D

STP

IEEE 802.1w

RSTP

IEEE 802.1s

MSTP

IEEE 802.1p

Class of Service

IEEE 802.1Q

VLAN Tagging

IEEE 802.1X

Port Authentication

IEEE 1588v2

PTP

Interface

Ports

8 x 10/100/1000BASE-T (PoE RJ45)

4 x GbE SFP Slots

1 x RJ45 Console Port

1 x USB Port

DIP Switch

Primary/Redundant Power Voltage Drop Alarm setting

LED Panel

PWR, RPS, ALM, POST, SFP, PoE, 1000, LNK/ACT

Power

Input Voltage

Primary inputs: 24~57V DC

Redundant inputs: 24~57V DC

Connection

Teminal Block

Power Consumption

System: 18W

PoE Power Budget: 240W @ 48V or 124 W @ 24V

Alarm Relay

One relay output, 1A @ 24V DC

Mechanical and Environment

Housing

Aluminum (IP30 Protection)

Mounting

DIN-Rail

Operating Temperature

-40°C~75°C (-40°F~167°F)

Storage Temperature

-40°C~85°C (-40°F~185°F)

Operating Humidity

5 to 95% RH (non-condensing)

Storage Humidity

5 to 95% RH (non-condensing)

Weight

955 g (2.1 lb)

Dimension (WxHxD)

50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)



Ordering Information

Model Description
SEN-9648P-24V-SS Managed 8 x 10/100/1000 PoE+ & 4 x GbE SFP Switch, Substation Approval



*Specifications subject to change without prior notice.
