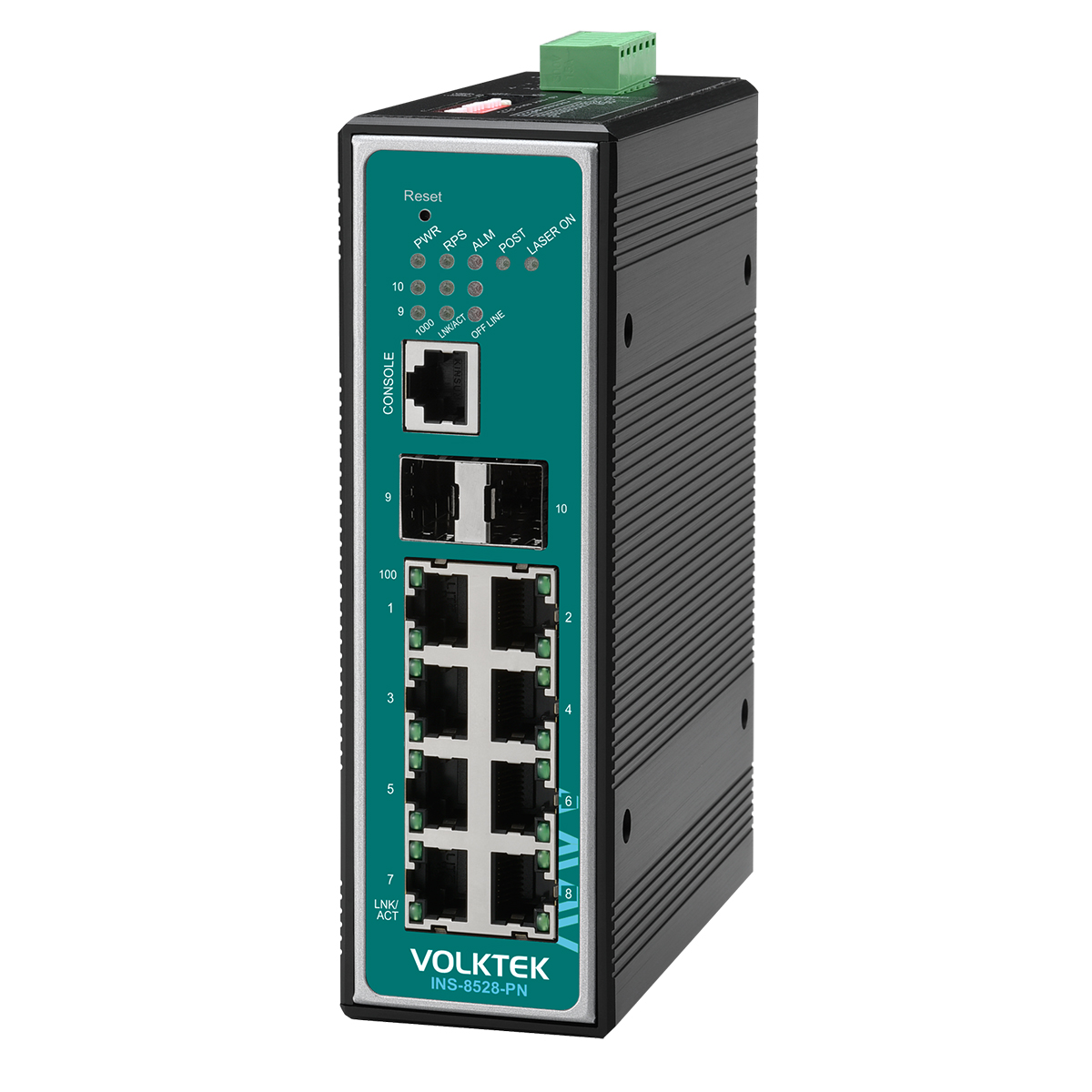

IEN-8528-PN
Product Highlights
  • 8 x 10/100 RJ45 ports and 2 x FX/GbE SFP uplink ports for long-distance, noise-free to control devices and daisy chain connection
  • Optimizes network performance with Storm and Flow Control and QoS for enough bandwidth
  • DIP control lets users decide important port settings by pushing a simple switch
  • PROFINET Compliant, communication standard in industrial applications
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and IP30 Aluminum Housing

* The highest degree of temperature operation certified by UL is -40°C~70°C (-40°F~158°F).

  • -40°C-75°C
  • DIN Rail
  • ESD Protection
  • IP Code30
  • QoS
  • Redundant Power
  • Surge Protection
  • PROFINET
  • Modbus TCP
  • UL
Overview

IEN-8528PN is a high-performance 8-port 10/100 RJ45 downlink uplink managed industrial switch designed for communication between controllers and devices in automation settings using PROFINET protocol. The SFP port offers long-distance, noise-free fiber transmissions that adapt to Fast and Gigabit Ethernet speeds. It is used with industrial devices such as PLCs, HMIs, and legacy devices.

The switch offers various in-built traffic optimization and network performance features to prioritize important data packets, prevent the loss of data during communication, and stabilize transmission. It is compatible with third-party devices, which can be easily identified with the help of the Topology map. This device complies with cybersecurity standards to safeguard the network from vulnerabilities and protect your assets.

This switch is built with industrial grade components and enclosed in an IP30 aluminum case with high thermal conductivity, which protects the device from tools and hazards. This device uses PROFINET packets to communicate with other devices and meets industrial requirements. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.

Features

Accident Proof
Engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current, and reverse polarity in the event of an accident.


SFP Digital Diagnostic Monitoring
The DDM feature monitors SFP real-time parameters to diagnose faults efficiently. Users receive automatic warning messages through e-mail and relay output with real-time alarm messages.


Network Segmentation and Improved Traffic
VLANs to segment the network into smaller parts and organize them into separate broadcast domains to control traffic, limit broadcast traffic, and reduce broadcast storms. At the same time, the switch offers the GVRP protocol to eliminate unnecessary network traffic.


Network Redundancy
Volktek's industrial switches redundant ring architecture enhances network reliability and makes them ideal for deploying secure automation network systems in tough outdoor industrial environments, such as ITS, maritime, mining, and manufacturing systems. With Volktek Xpress Ring there are various choices of ring topologies, including Xpress Ring, Dual Xpress Ring, Dual Homing, in rapid recovery time (<20ms @ 250 switches). G.8032v2, Ethernet Ring Protection Switching (ERPS) protocol, provides protection for Ethernet traffic in a multiple ring topology with a fast recovery time (less than 50ms).VLANs to segment the network into smaller parts and organize them into separate broadcast domains to control traffic, limit broadcast traffic, and reduce broadcast storms. At the same time, the switch offers GVRP protocol to eliminate unnecessary network traffic.


Redundant Power System
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.

Specifications

Standards

IEEE 802.3

10BASE-T

IEEE 802.3u

100BASE-TX

IEEE 802.3u

100BASE-FX

IEEE 802.3z

1000BASE-SX/LX

IEEE 802.3

Nway Auto-negotiation

IEEE 802.3x

Flow Control

IEEE 802.3ad

Link Aggregation

IEEE 802.1AB

LLDP

IEEE 802.1ad

QinQ

IEEE 802.1D

STP

IEEE 802.1w

RSTP

IEEE 802.1s

MSTP

IEEE 802.1p

Class of Service

IEEE 802.1Q

VLAN Tagging

IEEE 802.1X

Port Authentication

IEEE 1588v2

PTP

Interface

Ports

8 x 10/100/BASE-T

2 x FX/GbE SFP Slots

1 x RJ45 Console Port

DIP Switch

Primary/Redundant Power Voltage Drop Alarm setting

LED Panel

PWR, RPS, ALM, POST, LASER ON, 1000, LNK/ACK, OFF LINE,100

Power

Input Voltage

Primary inputs:12~60VDC

Redundant inputs:12~60VDC

Connection

Teminal Block

Power Consumption

System:12W

Alarm Relay

One relay output, 1 A @ 24V DC

Mechanical and Environment

Housing

Aluminum (IP30 Protection)

Mounting

DIN-Rail

Operating Temperature

-40°C~75°C (-40°F~167°F)

Storage Temperature

-40°C~85°C (-40°F~185°F)

Operating Humidity

5 to 95% RH (non-condensing)

Storage Humidity

5 to 95% RH (non-condensing)

Weight

780 g (1.7 lb)

Dimension (WxHxD)

50 x 165 x 122.2 mm (1.97 x 6.50 x 4.81 in)



Ordering Information

Model Description
IEN-8528-PN Managed 8 x 10/100/1000 RJ45 & 2x FX/GbE SFP Industrial Switch, PROFINET Compliance



*Specifications subject to change without prior notice.
