INS-8005A
Product Highlights
  • 5 x 10/100 RJ45 ports for Fast Ethernet speed application devices
  • Auto-negotiation ports allow operation without extra device installation
  • Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
  • Prevents packet loss with VLAN Passthru by forwarding VLAN packets without dropping or modifying them
  • Resistant to interference in environments with multiple types of machinery
  • Operating temperatures-40℃~75℃ (-40°F~167°F) and IP30 metal housing

* The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F).

  • -40°C-75°C
  • Auto Negotiation
  • DIN Rail
  • ESD Protection
  • IP Code30
  • Surge Protection
  • UL
Overview

INS-8005A is an unmanaged 5-port, 10/100 RJ45 downlink industrial switch for very elementary interconnection between devices. It offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. The switch offers in-built traffic optimization to have stable performance and prevents packet loss by transporting VLAN packets without modifying them.

This switch is built with industrial grade components, enclosed in an IP30 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.



Features

Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.


Simple Installation
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.

Specifications

Standards

IEEE 802.3

10BASE-T

IEEE 802.3u

100BASE-TX

IEEE 802.3

Nway Auto-Negotiation

IEEE 802.3x

Flow Control

Interface

Ports

5 x 10/100Base-TX (RJ45)

LED Panel

PWR, 100, LNK/ACT

Power

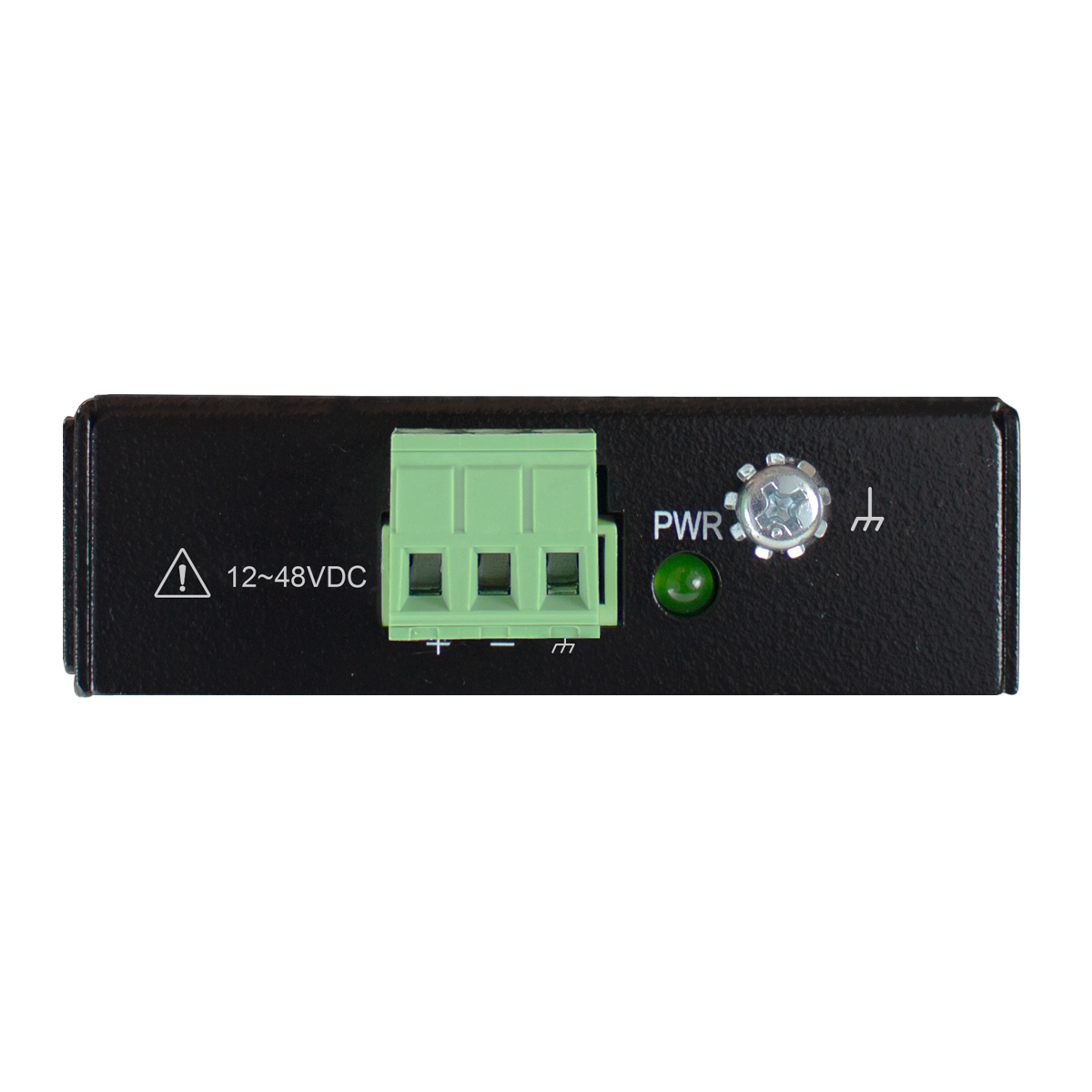

Input Voltage

12~48VDC, 0.2A max

Connection

Terminal Block

Power Input Polarity Protection

Present

Current Overload Protection

Present

Power Consumption

3W

Mechanical and Environment

Housing

Aluminum (IP30 Protection)

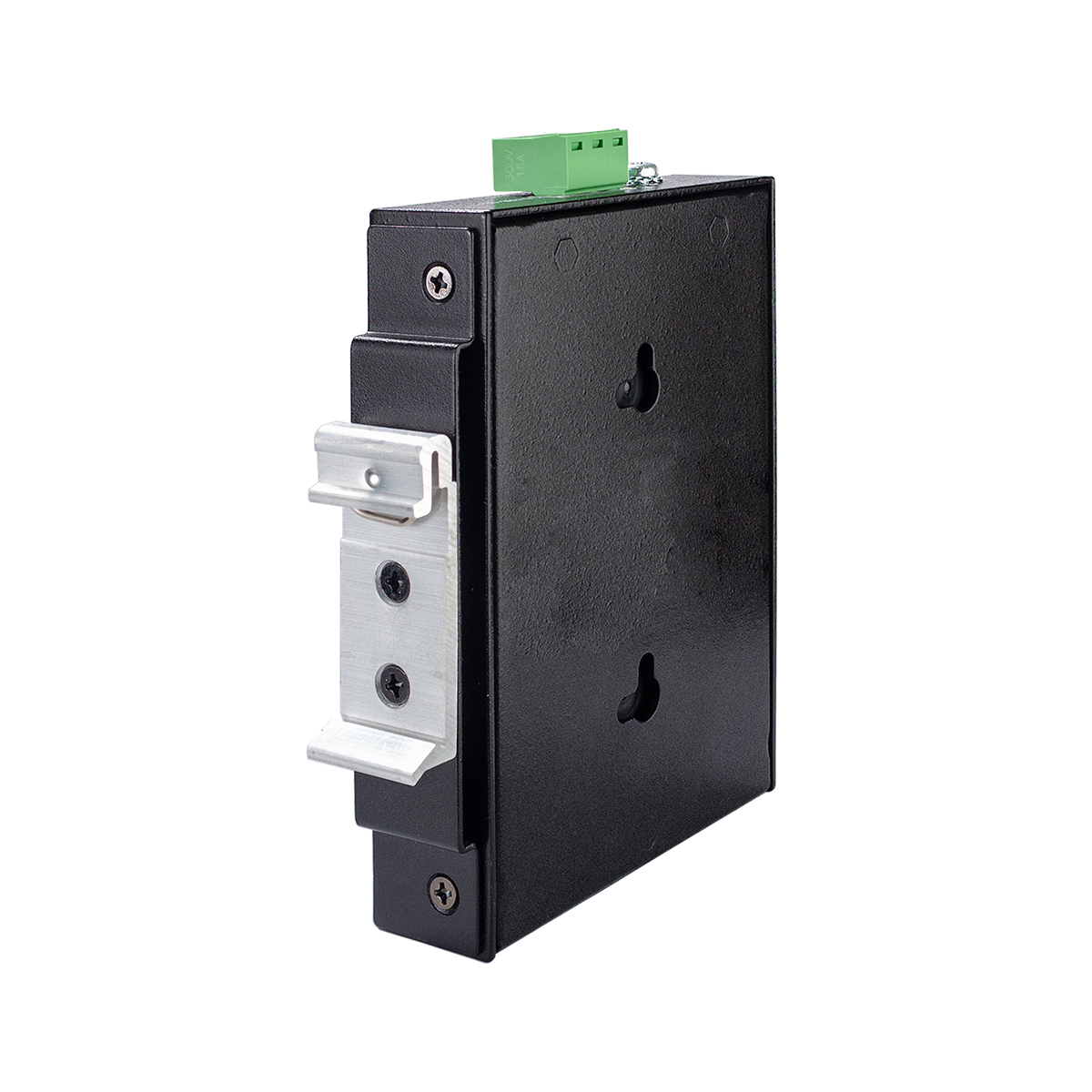

Mounting

DIN-Rail, Wall Mount

Operating Temperature

-40°C~75°C (-40°F~167°F)

Storage Temperature

-40°C~85°C (-40°F~185°F)

Operating Humidity

5 to 95% RH (non-condensing)

Storage Humidity

5 to 95% RH (non-condensing)

Weight

180 g (0.4 lb)

Dimension (WxHxD)

23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)



Ordering Information

Model Description
INS-8005A Unmanaged 5 x 10/100 RJ45 Industrial Switch



*Specifications subject to change without prior notice.
