Volktek’s IEN-9648M Managed Industrial switch is equipped with 8 port 10/100/1000Base-T and 4 Gigabit SFP slots. Under DNV (Det Norske Veritas) certified for Industrial switch, the IEN-9648M suits your anti-corrosion harsh environments in marine & offshore applications and contains all the standard features of a industrial managed switch. Engineered with hardened components and enclosed in a rugged case, the switch can operate in wide temperatures from -40°C to 75°C and excellent tolerance capability to high vibration and shock.
IEN-9648M is a Layer 2+ switch that offers additional enhanced features for encompassed management with RMON, SNMP v1/v2c/v3, SNTP, network recovery in milliseconds, and advanced network cybersecurity features and traffic control.
Robust Switch Performance
Industrial Ethernet Network-9648M. It features IP30 aluminum case protection, surge and ESD protection. SFP ports support 1000Mbps for high bandwidth transmissions. Automatic warnings through email and relay output enable quick response to hardware abnormalities.

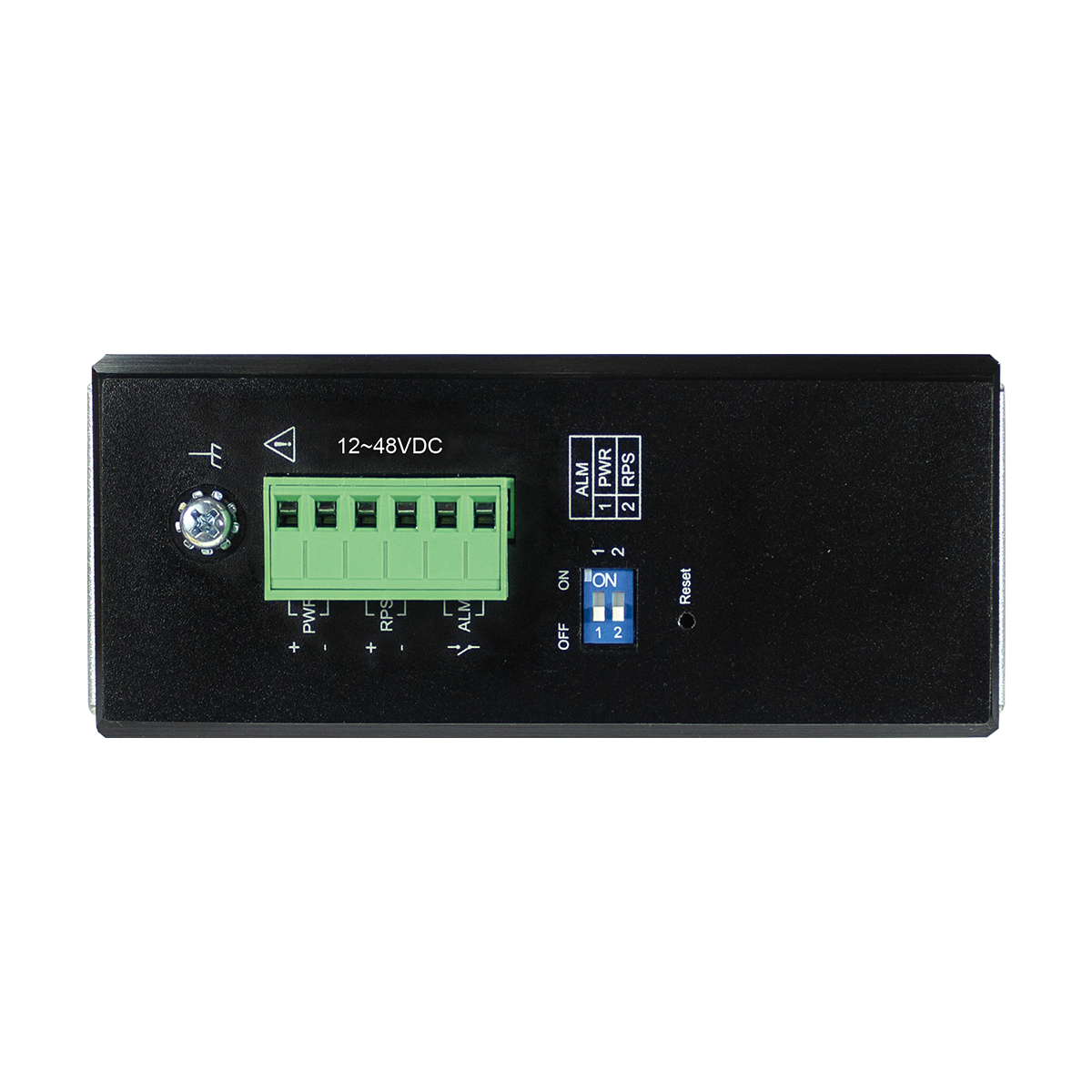

Redundant Power Input system
Industrial Ethernet Network-9648M. Redundant power system with standard industrial terminal block for uninterrupted operation. Primary power failure activates secondary power for continuous service. Ideal for mission-critical industrial applications.
Efficient network monitoring and proactive capability
Industrial Ethernet Network-9648M. Supports SNMP and RMON for efficient traffic management and network analysis. Enables centralized management and remote monitoring of network performance. Helps identify and resolve connectivity and performance issues, reducing operational expenses and ensuring a healthy network.
Bandwidth management to prevent unpredictable network status
Industrial Ethernet Network-9648M. Comprehensive QoS mechanisms ensure reliable and prioritized service delivery. Bandwidth management function allocates bandwidth based on application priority. Administrators have control over bandwidth allocation, preventing errors and optimizing utilization. Ideal for industrial surveillance applications requiring reliable and uninterrupted transmission.
Redundant Ring and Fast Recovery for Surveillance System
Industrial Ethernet Network-9648M. Xpress Ring for fast link failure recovery (<10ms). Ensures uninterrupted communications in IP surveillance systems. Designed to handle heavy traffic load of video and data.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.3ad
Link Aggregation
IEEE 802.3az
Energy Efficient Ethernet (EEE)
IEEE 802.1AB
LLDP
IEEE 802.1ad
QinQ
IEEE 802.1D
STP
IEEE 802.1w
RSTP
IEEE 802.1s
MSTP
IEEE 802.1p
Class of Service
IEEE 802.1Q
VLAN Tagging
IEEE 802.1X
Port Authentication
IEEE 1588v2
PTP
Interface
Ports
8 x 10/100/1000BASE-T (PoE RJ45)
4 x GbE SFP Slots
1 x RJ45 Console Port
1 x USB Port
DIP Switch
Primary/Redundant Power Voltage Drop
Alarm setting
LED Panel
PWR, RPS, ALM, POST, PoE, 1000, LNK/ACT
Power
Input Voltage
Primary inputs: 12-48V DC
Redundant inputs: 12-48V DC
Connection
Teminal Block
Power Consumption
System: 18W
Alarm Relay
One relay output, 1 A @ 24V DC
Mechanical and Environment
Housing
Aluminum (IP30 Protection)

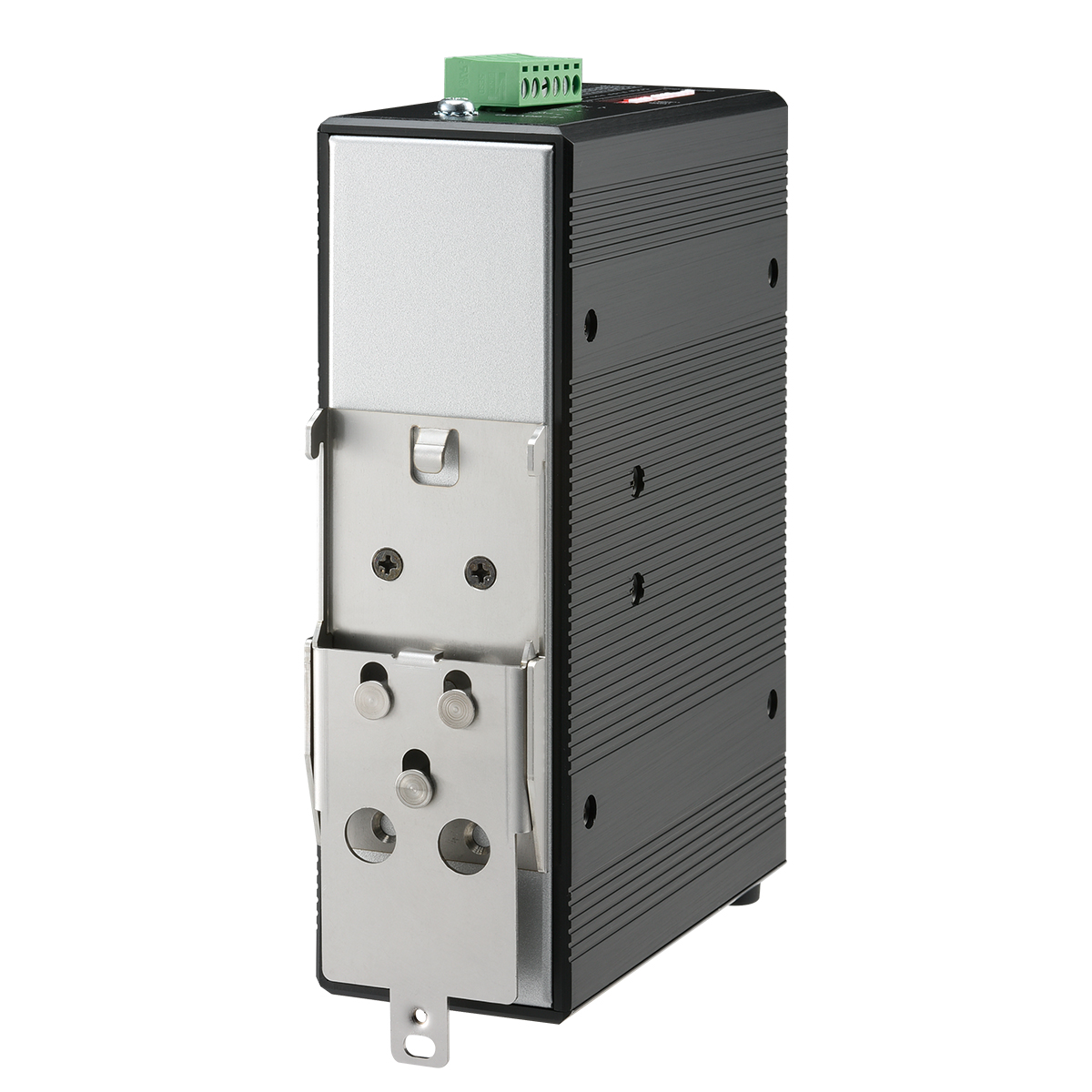

Mounting
DIN-Rail
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
955 g (2.1 lb)
Dimension (WxHxD)
50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)
Ordering Information
| Model | Description |
|---|---|
| IEN-9648M | L2+ Managed 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial Switch, DNV Marine Approval |
*Specifications subject to change without prior notice.
