INS-8408AM is an unmanaged 8-port, 10/100/1000 RJ45 downlink industrial switch for communication between controllers and devices in automation settings. The device can be used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications.
The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets, prevent the loss of data during communication, and stable transmission.
This switch is built with industrial-grade components, enclosed in IP30 metal to protect the device from tools and hazards. This device is certified DNV GL approved for safe use in marine applications. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.
Safety and High Performance in Industrial Marine Applications
This device is tested and certified for safe use in demanding conditions characteristic of Industrial and Marine Applications, to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over-voltage, over-current, and reverse polarity, including the following:
Shock (IEC 60068-2-27) | Freefall (IEC 60068-2-32) | Vibration (IEC 60068-2-6) | DNVGL-CS-0339:2016 | DNVGL-RU-SHIP-Pt4Ch9:2018 | IEC-60945, IACS E10 (Rev.6 2014) | LR certify environmental category ENV1, ENV2, and ENV3
Bandwidth Optimization
Two built-in VIP ports (ports 1, 2) that support IEEE802.1p Quality of Service (QoS) enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications, even during high traffic rates when connected to its two VIP ports.
Time-Efficient Installation
Auto-MDI/MDIX (medium dependent interface / MDI crossover) on all ports allow automatic communication once the switch is plugged.
Eco-friendly Green Ethernet Design
This eco-friendly design allows the switch to automatically adjust power consumption and conserve energy during low data activity periods, which concurrently helps to lower operational costs and protect the planet.
Redundant Power System
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE802.3az
Energy Efficient Ethernet (EEE)

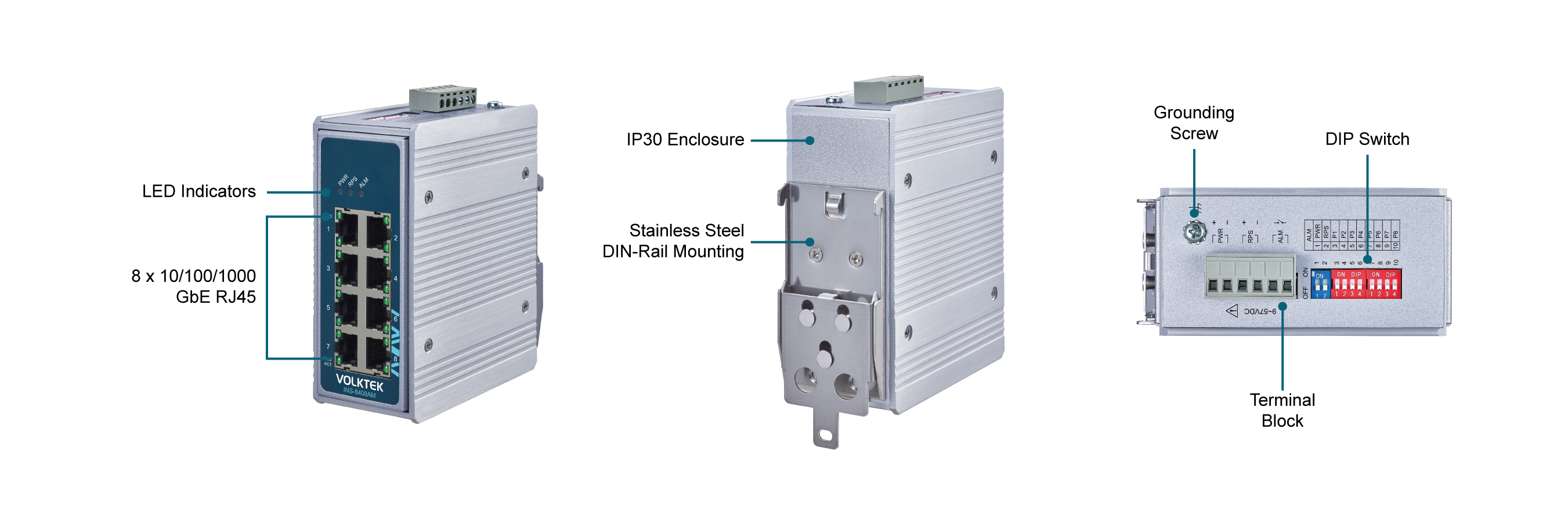

Interface
Ports
8 x 10/100/1000BASE-T (RJ45)
Connectors
Terminal Block

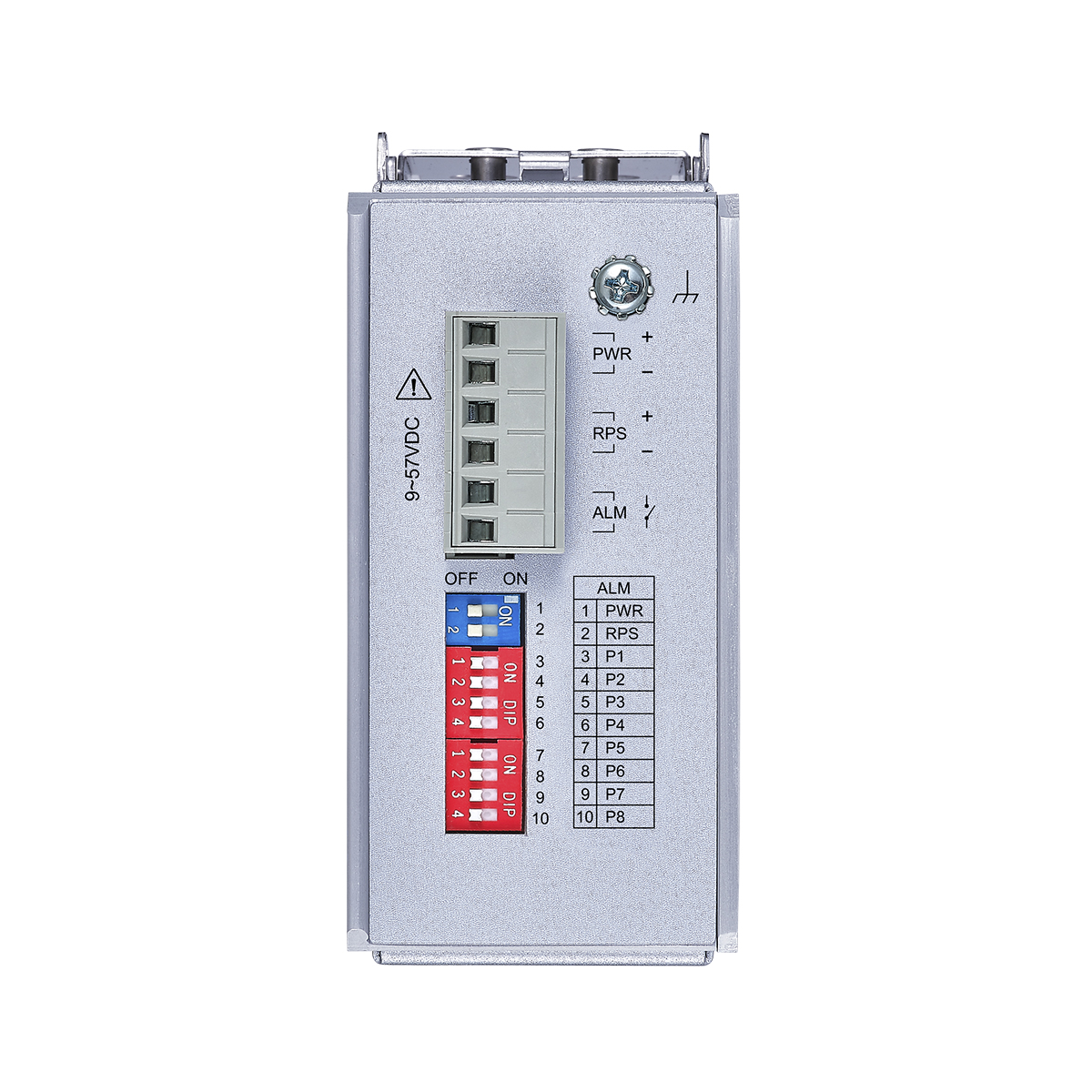

DIP Switch
PWR, RPS, ALM, 1000, LNK/ACT
Power
Primary/Redundant inputs
24VDC
Connection
Terminal Block
Power Consumption
5W (Max)
ESD protection
8KV / 15KV
Surge protection
3KV / 6KV (RJ45 Ports Line to ground)
Reverse Polarity
Present
Overload current
Present
Mechanical and Environment
Housing
Aluminum, IP30 protection

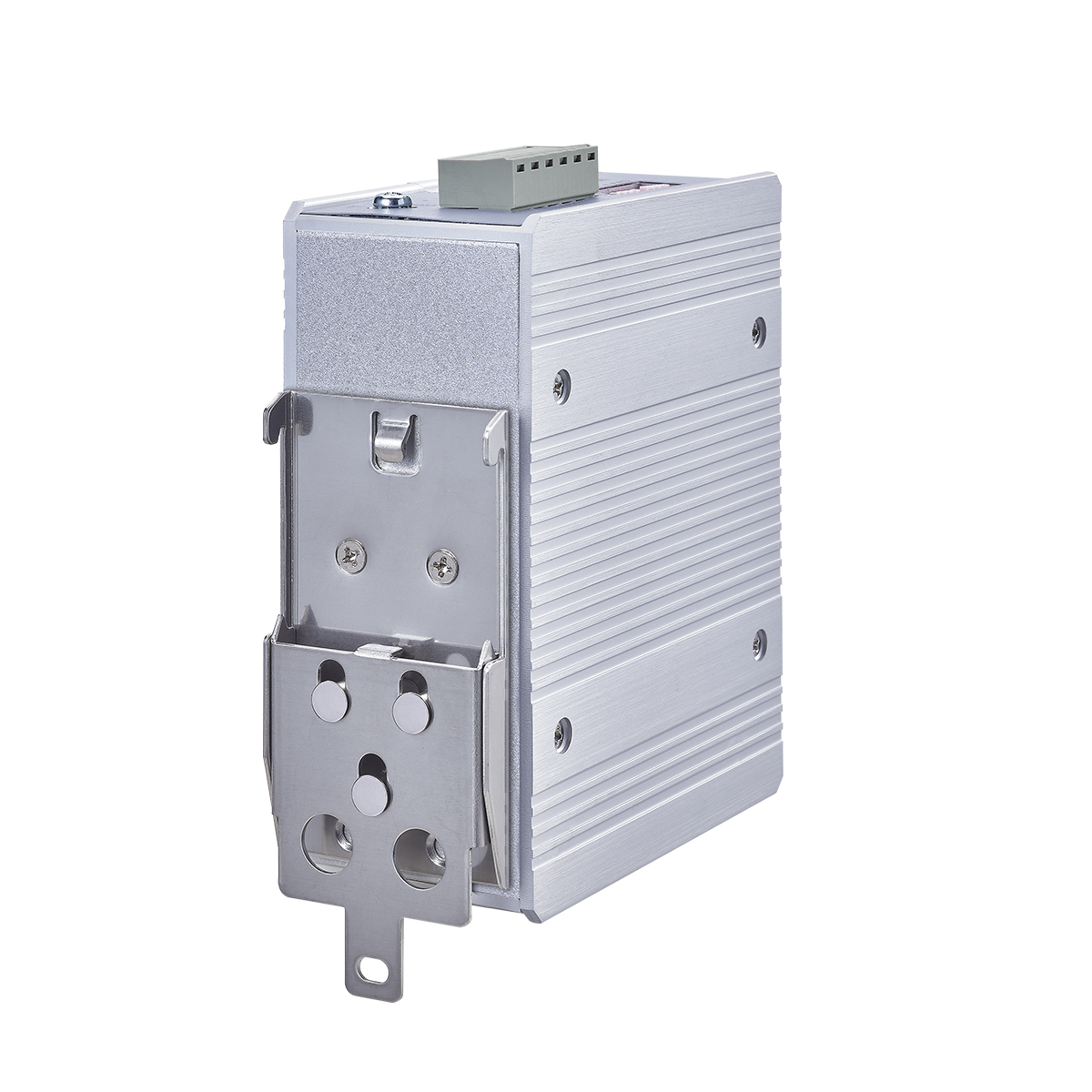

Mounting
DIN-Rail
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
590 g (1.3 lb)

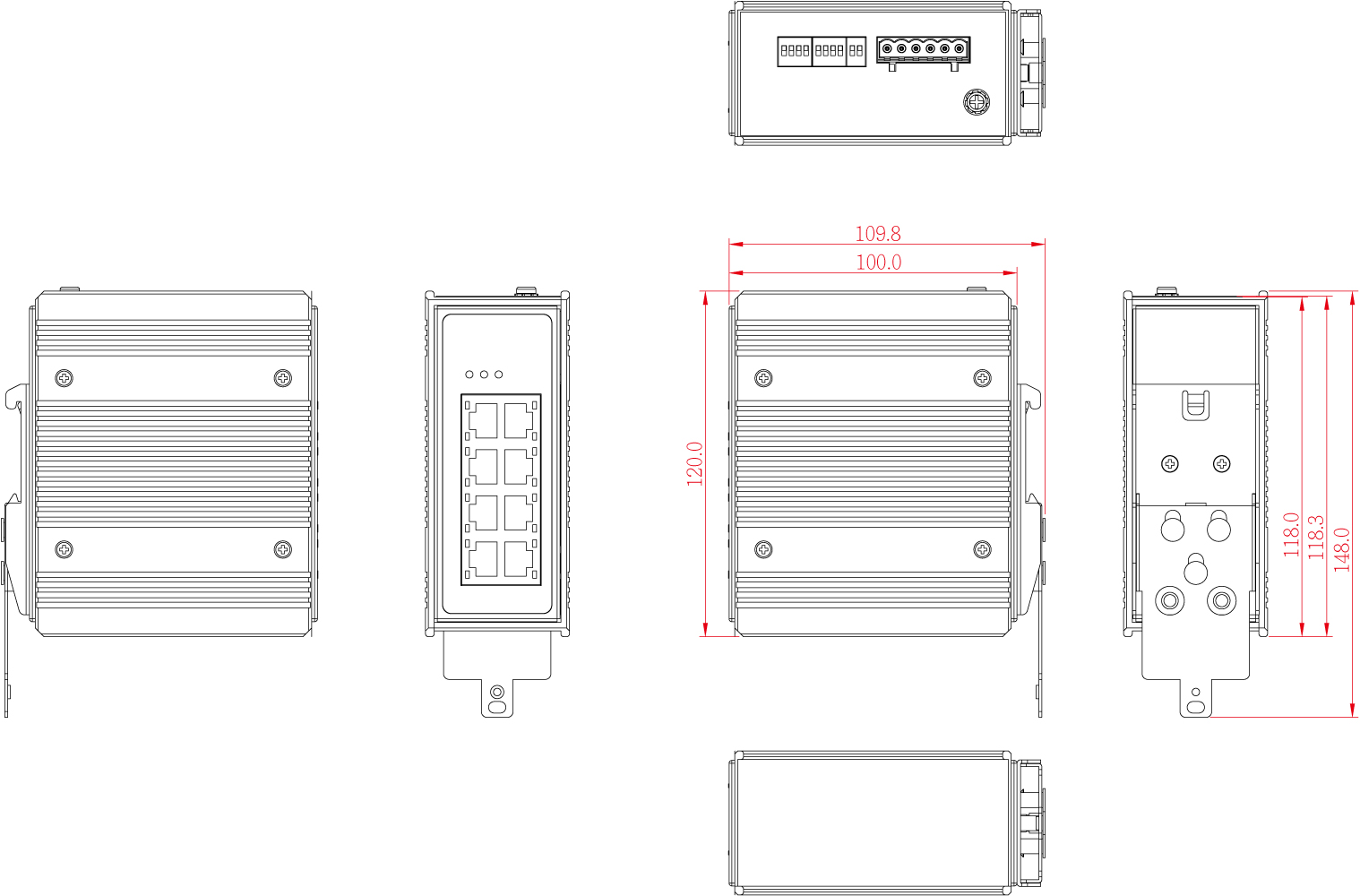

Dimension (WxHxD)
50 x 121.4 x 100 mm (1.97 x 4.78 x 3.94 in)
Ordering Information
| Model | Description |
|---|---|
| INS-8408AM | Unmanaged 8 x 10/100/1000 RJ45 Industrial Switch, DNV GL Marine Approval |
*Specifications subject to change without prior notice.
