IEN-9428-SS is an 8-port 10/100/1000 RJ45 downlink and 2-port GbE SFP downlink unmanaged industrial-grade switch designed to meet the requirements and environmental conditions of substation applications. The downlink ports connect to industrial devices and controllers. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center.
To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE. The device allows users to change data priority and speed settings pushing the DIP switch.

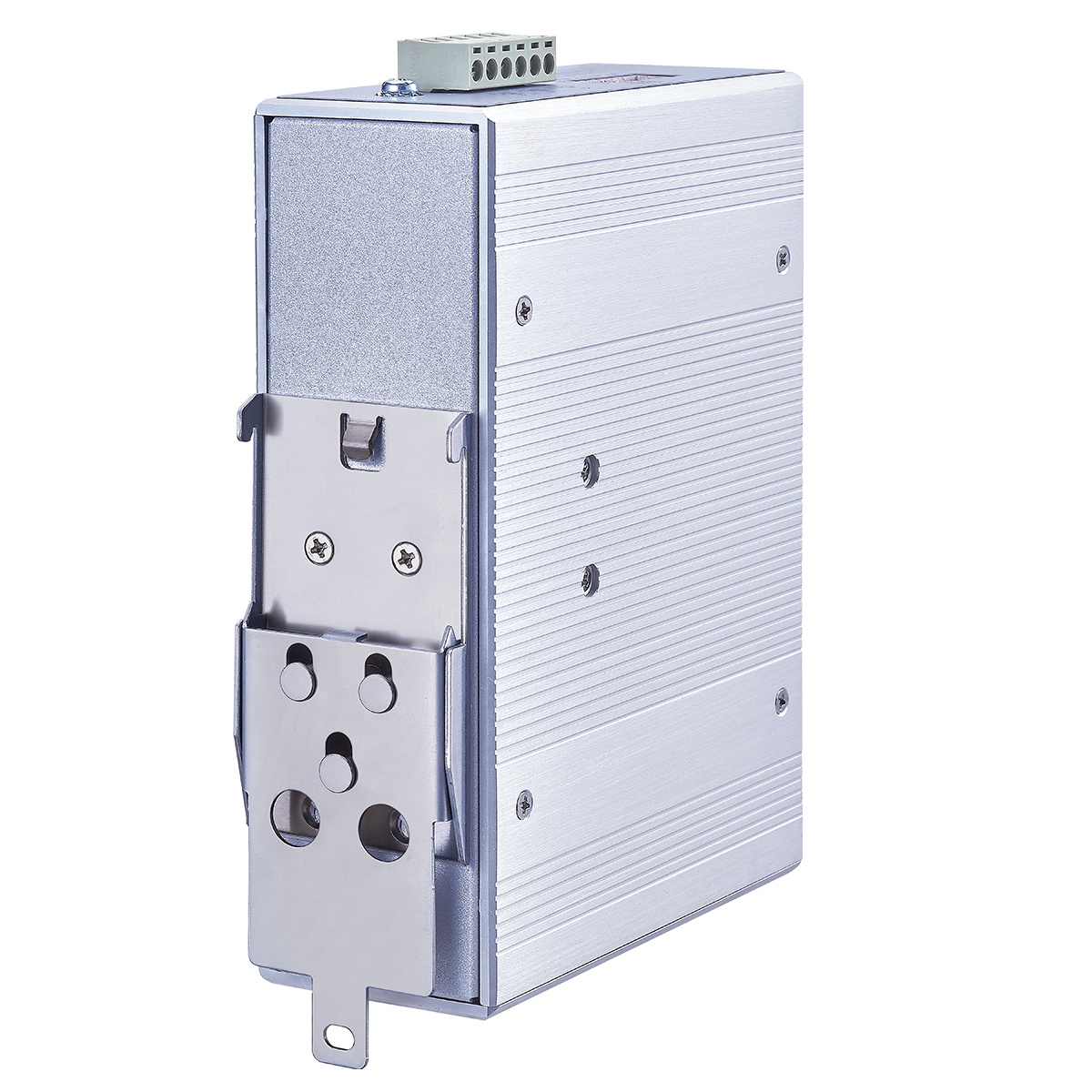

This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F), it suits demanding environments.
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Redundant Power System
Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm.
Eco-friendly Green Ethernet Technology
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology capable of automatic adjustment of power consumption.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.1p
Class of Service

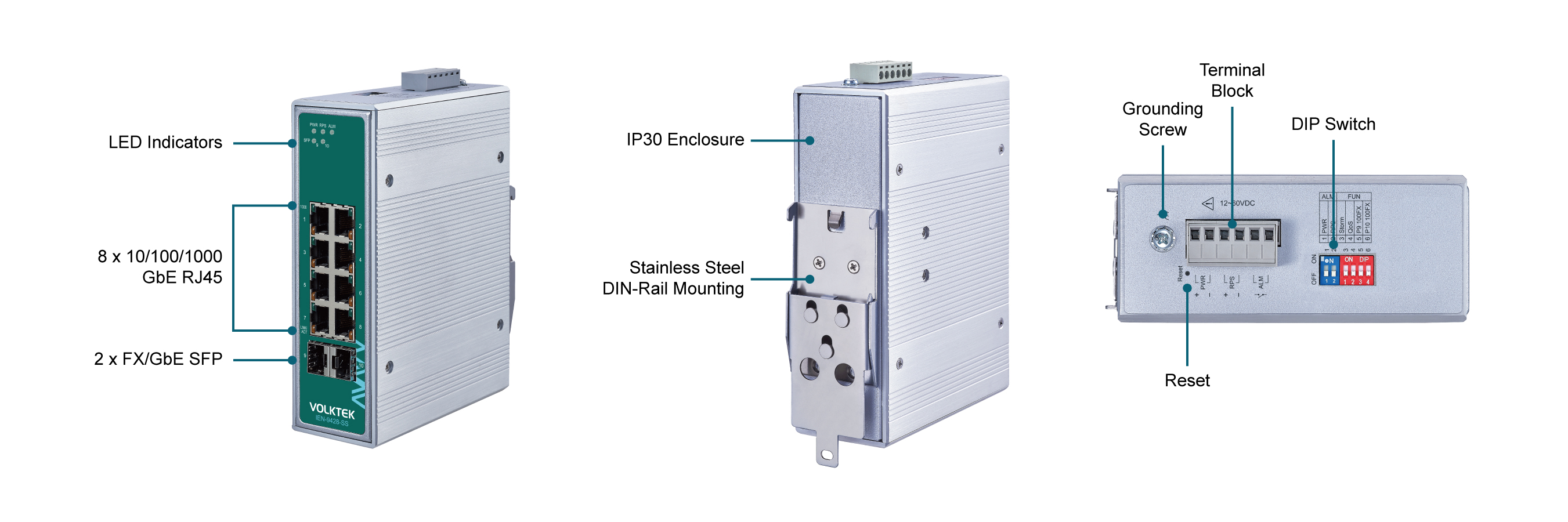

Interface
Ports
8 x 10/100/1000BASE-T (RJ45)
2 x 100FX/GbE SFP Slots
DIP Switch
Power voltage drop alarm setting (PWR & RPS),
Broadcast storm control setting (STORM),
Port-based QoS setting (QoS on P1 & P2),
Fiber port speed setting (100FX on P9 & P10)
LED Panel
PWR, RPS, ALM, SFP, 1000, LNK/ACT
Power
Input Voltage
12V~60VDC
Connection
Terminal Block
Power Consumption
System: 13W
Alarm Relay
One relay output with current carrying capacity of 1 A @ 24V DC
Mechanical and Environment
Housing
Aluminum Case (IP30 protection)
Mounting Kit
DIN-Rail, Rack-mount
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
930 g (2.0 lb)

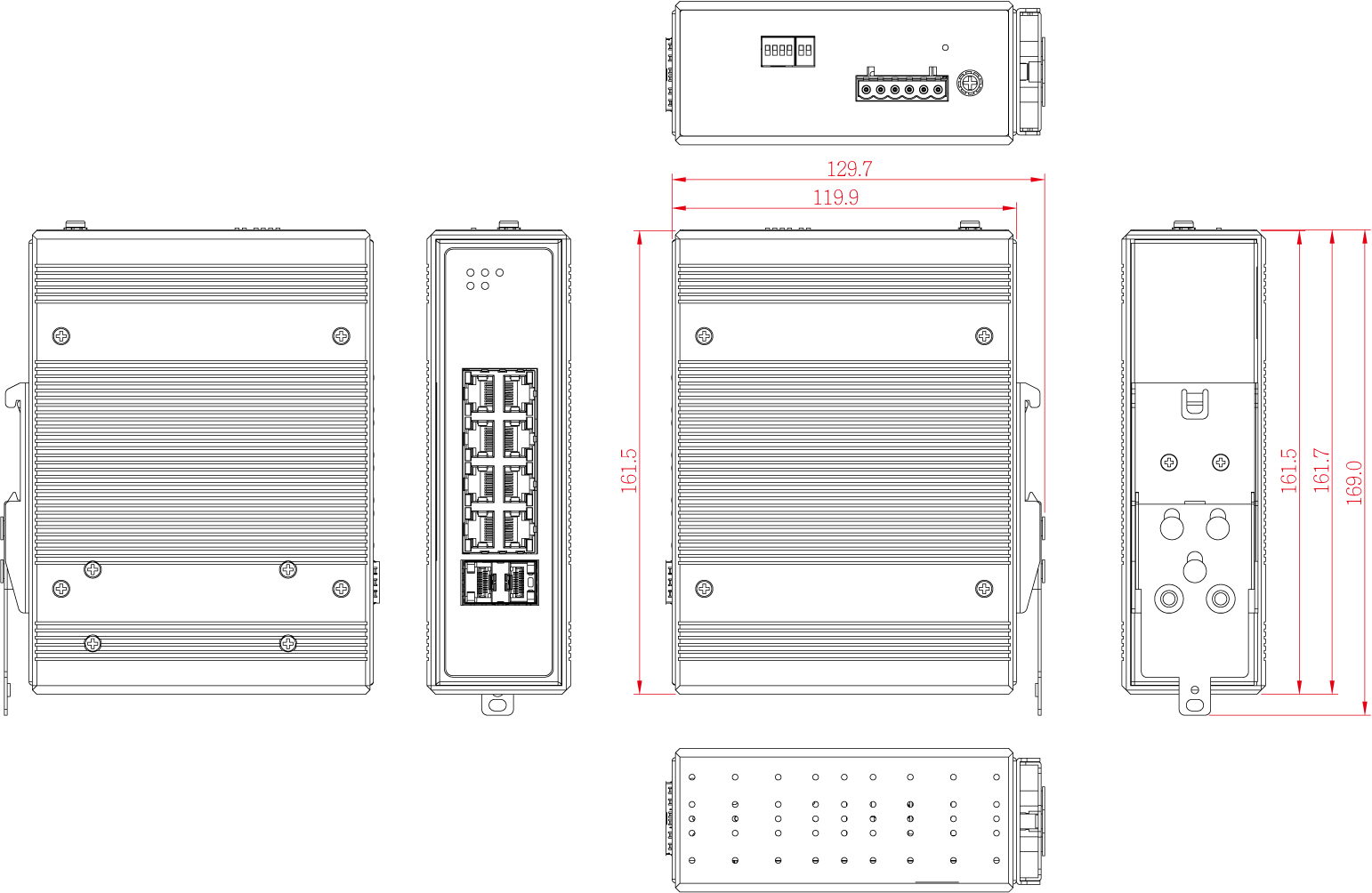

Dimension (WxHxD)
50 x 164.9 x 122.2 mm (1.97 x 6.49 x 4.81 in)
.jpg)
Ordering Information
| Model | Description |
|---|---|
| IEN-9428-SS | Unmanaged 8 x 10/100/1000 RJ45 & 2FX/GbE SFP Industrial Switch, Substation Approval |
*Specifications subject to change without prior notice.
