* The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F), DNV is (Class D) -25°C~70°C (-13°F~158°F)
* The nominal voltage of 24VDC for DNV type approval is specified
* The switch enclosure is designed to meet IP40 ingress protection, while the device is DNV type approved with an ingress protection rating of IP20
Are you prepared for a networking solution that transcends the ordinary? Look no further than our 9065-8T2GS-MR, a Managed 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch meticulously crafted to excel in the most demanding environments.
Designed to meet the stringent DNV certification standards, the 9065-8T2GS-MR switch delivers robust and reliable performance for mission-critical applications on ships, offshore platforms, and port facilities. Encased in a rugged, hardened shell and equipped with components designed to withstand extreme vibration and shock, it ensures uninterrupted operation even under the harshest conditions.
Built to thrive in extreme climates, it performs flawlessly across a wide temperature range, from -40°C to 75°C. No matter the environment, the 9065-8T2GS-MR guarantees the seamless operation of your network.
Each port is equipped with dual LEDs, providing instant feedback on link status, transmission speed, and activity. In addition, a relay output for event alarms keeps you informed at all times. In case of a power failure, a built-in LED alarm is automatically activated, ensuring administrators receive timely notifications.
But the 9065-8T2GS-MR is more than just a switch—it is a tailored networking solution designed for the future of industrial applications. It provides the essential network backbone for onboard systems, offshore automation, and new energy, delivering unmatched reliability where it matters most.
SNMP Remote Management
SNMP is used for collecting information from, and configuring, network devices on an Internet Protocol (IP) network. Volktek Managed switch provides an SNMP agent that works with third-party SNMP management software to monitor the device status.
Recovery Timer for Loop Detection
Instead of being re-opened manually, a configurable timer is provided to automatically recover a port blocked by the loop detection function.
RMON
Remote Network Monitoring is a network analysis protocol, designed to aid the network administrator in gathering data on network operations such as traffic data both historical and real-time, and configurable data based on variables for time, highest or lowest traffic, users, and more.
ACL
The L2/L3/L4 Access Control List (ACL) function allows you to create filter rules for determining whether the switch will forward specific packets (based on information contained in the headers) for security or control reasons. These criteria cover multiple protocol layers (including MAC and IP) and port numbers. It enables network operators to flexibly control the traffic (like blocking traffic from P2P software or throwing away packets destined for unused port numbers, which might be hacker attacks).
Dual Fiber Ports
It's useful connectivity to save the cost for fiber cable deployment. With this dual fiber link support, users can acquire the benefits of link redundancy with ring-aware switches, like Volktek management switches.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3 Nway
Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.1D
STP
IEEE 802.1w
RSTP
IEEE 802.1s
MSTP
IEEE 802.1Q
VLAN Tagging
IEEE 802.1v
Protocol-based VLAN
IEEE 802.1ad
QinQ
IEEE 802.1p
Class of service
IEEE 802.3ad
Link Aggregation
IEEE 802.1ab
LLDP
ITU-T G.8032
ERPS
IEEE 802.1X
Port Authentication
IEEE 1588v2
PTP
IEEE 802.3az
Energy Efficient Ethernet (EEE)
Interface
Ports
8 x 10/100 RJ45,
2 x FX/GbE SFP,
1 x RS232 Console Port,
1 x USB Port

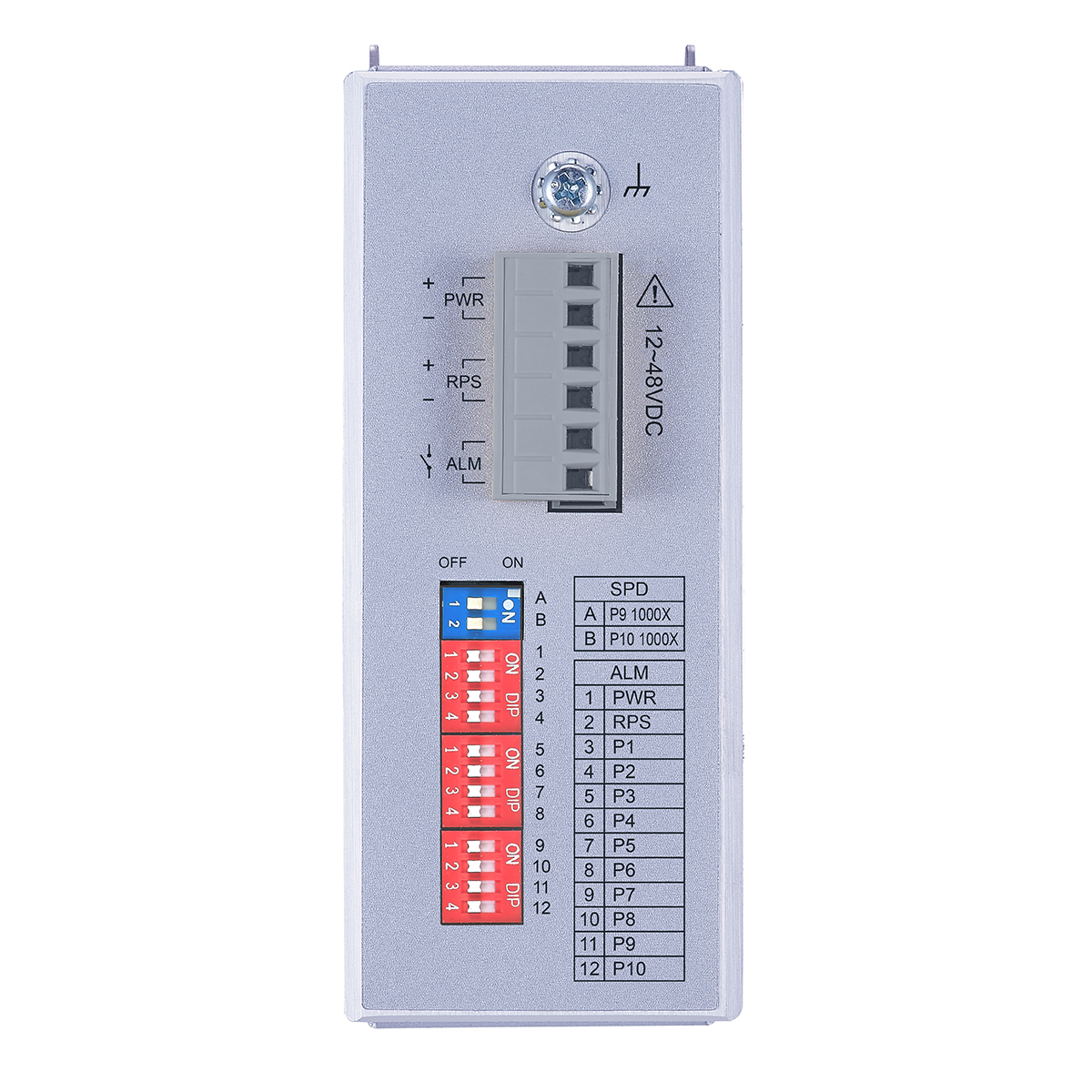

DIP Switch
Primary/Redundant Power Voltage Drop Alarm setting
LED Panel
PWR, RPS, ALM, POST, 100, 1000, LNK/ACT
Power
Input Voltage
Primary inputs: 12-48VDC (Nominal 24VDC for marine use),
Redundant inputs: 12-48VDC (Nominal 24VDC for marine use)
Power Consumption
18W
Mechanical and Environment
Housing
Aluminum (IP40 Protection)

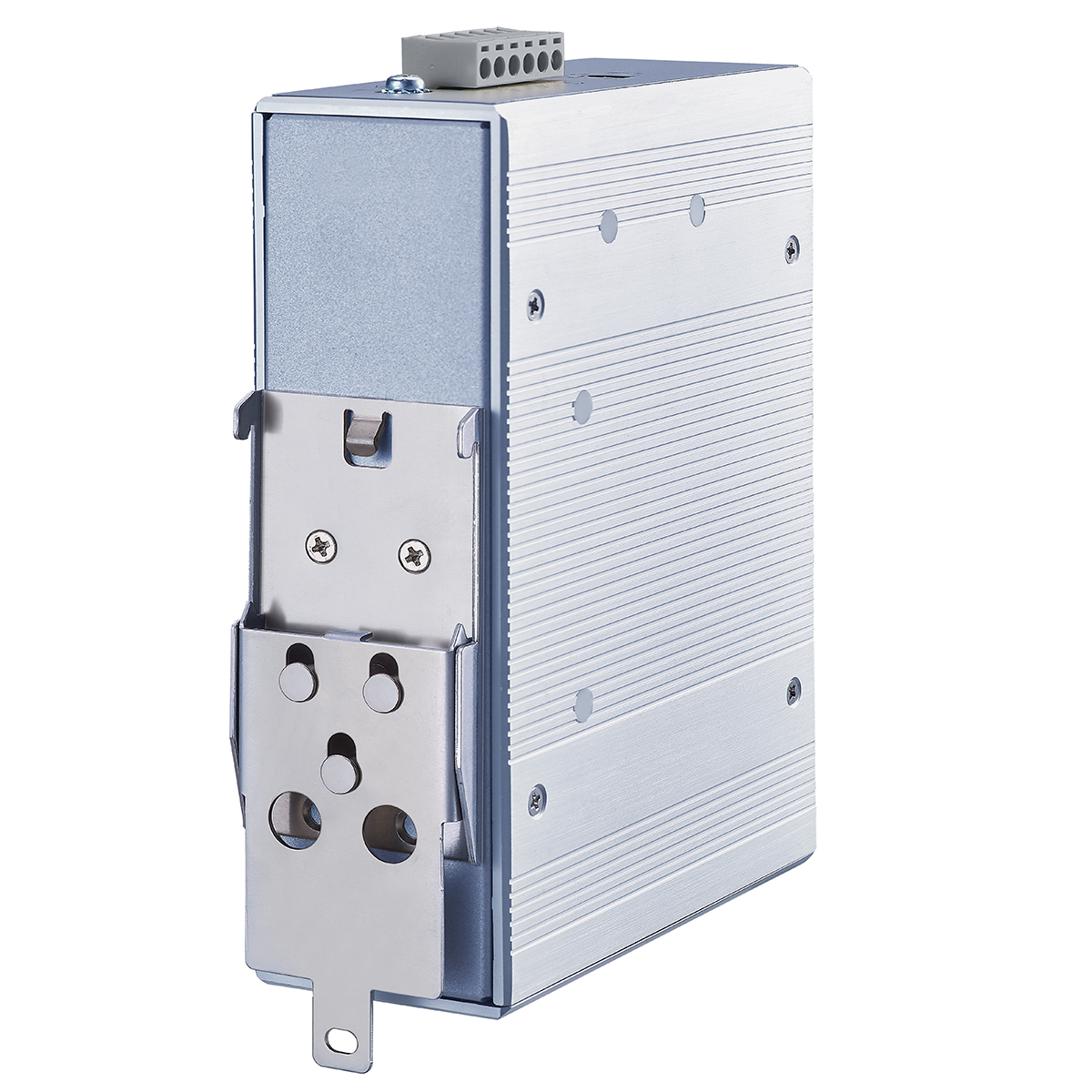

Mounting
DIN-Rail
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
970 g (2.2 lb)

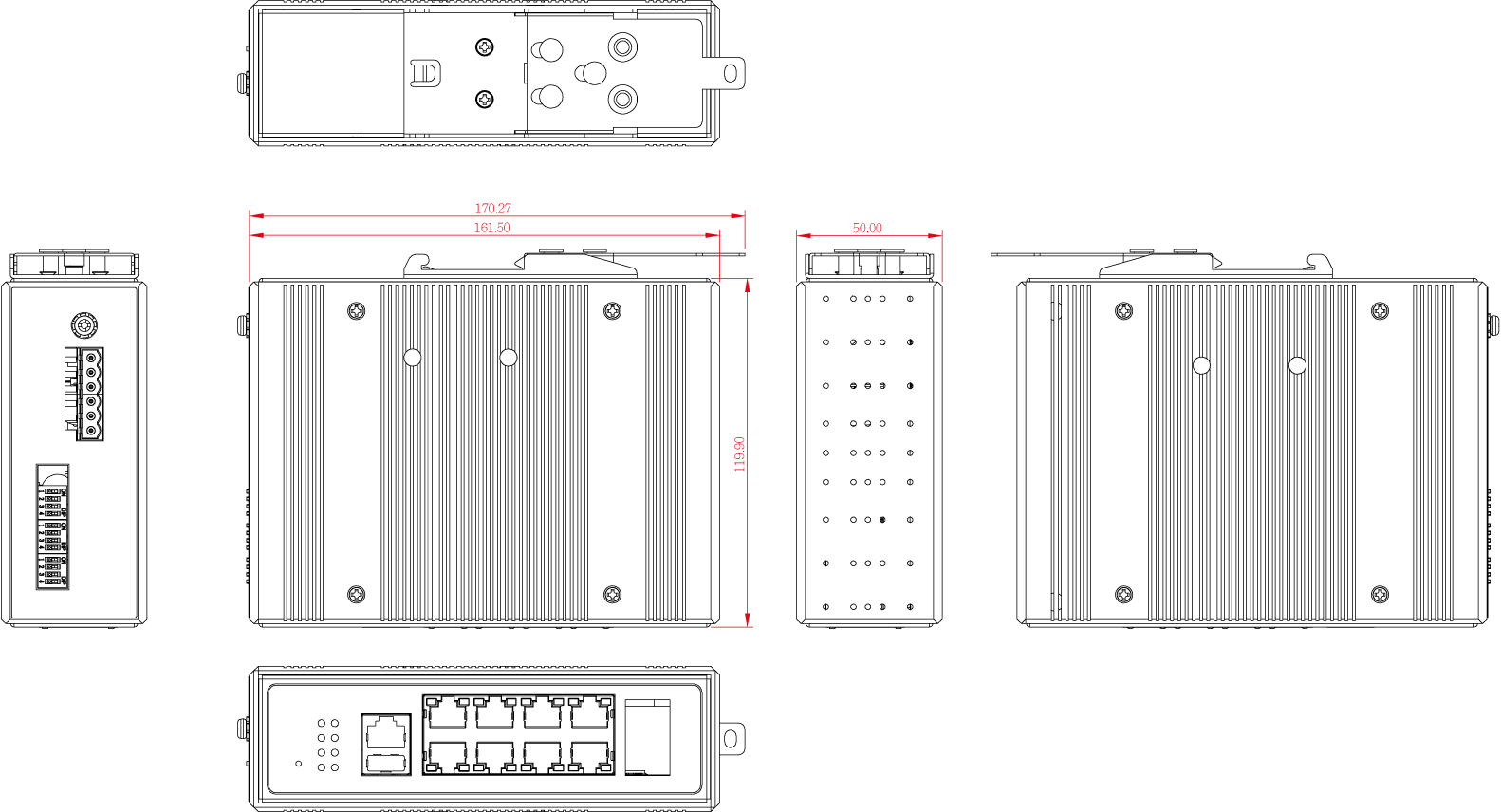

Dimension (W x H x D)
50 x 161.5 x 119.9 mm (1.97 x 6.36 x 4.72 in)
Ordering Information
| Model | Description |
|---|---|
| 9065-8T2GS-MR | Managed 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch, DNV Marine Approval, USB support |
*Specifications subject to change without prior notice.
