IEN-8225P-24V
Product Highlights
  • 4 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port and 1 x 10/100/1000 RJ45
  • 2 x GbE SFP uplink ports for long-distance connectivity to the control center and cascading
  • Industrial QoS prioritizes EtherNet/IP, PROFINET, and GOOSE packets
  • Wide input power range (24V to 57V) for factory floor and typical surveillance applications
  • Operating temperature -10℃ to 60℃ (14°F~140°F) and IP30 metal housing

* The highest degree of temperature operation certified by UL is -10˚C~60˚C (14°F~140°F).

  • -10°C-60°C
  • 30W
  • DIN Rail
  • IP Code30
  • PoE+
  • QoS
  • Surge Protection
  • UL
  • ROHS CE FC
Overview

INS-8225P-24V is an unmanaged 4-port 10/100/1000 PoE+ downlink, 1-port 10/100/1000 RJ45 downlink, and 2-port GbE SFP uplink hardened switch designed for simple plug & play surveillance and internet access points applications. This PoE+ switch reduces costs by eliminating the need for multiple power outlets to power each individual powered device (PD) at distances up to 100 meters. All PSE (power sourcing equipment) and LAN ports use auto-negotiation technology to discover compatible devices without extra installation requirements. The SFP port offers long-distance, noise-free fiber transmissions. The device uses port-based QoS to prioritize traffic on one port, uses VLAN Passthru for continuous packet transfer, and uses industrial QoS, to prioritize Ethernet/IP, PROFINET, and GOOSE packets. The device can be discovered by monitoring systems with the help of an LLDP Filter, to visualize the switch in a network topology map.


Designed to work in hardened indoor environments without air conditioning, it’s enclosed in an IP30 metal case to protect the device from tools and hazards, and operates at temperatures ranging from -10°C~60°C (14°F~140°F). The wide input power range from 24V to 57V enables the device to operate in factory ecosystems and other commercial/residential security applications without extra power outlet installation needed. The device has two power input methods, a 2-pin Terminal Block and a 4 pin mini-DIN that attaches firmly to the device avoiding it from disconnecting during strong vibrations.

Features



PoE Applications: Smart Surveillance and Wireless Access Points
Compliant with Type 1 and Type 2 PoE (IEEE 802.3 at) this switch offers up to 30W per port for energy-efficient applications. The switch allows simple “plug-n-play” for PDs to interact with devices as soon as they are connected.




VLAN Passthru: Constant Wending packet transfer
This feature avoids the loss of data transmission in unmanaged switches which constantly drop VLAN tagged frames as damaged. The feature VLAN Passthru passes the VLAN tagged frames unchanged, allowing this unmanaged switch to continue with a stable transmission.




Optimized Network Performance
The transmission of data to the control center or to other devices in real-time is crucial and assured with the help of the QoS (Quality of Service) and Flow Control features, the switch prioritizes data transmission and improves performance.




Industrial Protocol Priority
This switch is configured with EIP QoS, PROFINET QoS, and GOOSE QoS to prioritize and transmit industrial application packets in applications with these types of communication.




LLDP Filtering: Device Discovery

Unmanaged switches are perfect for plug & play networks avoiding all the complications of installing a modern and future-proofed network. The LLDP filter allows the discovery packets to be deleted to avoid device flapping issues.






Power Failure Protection: Redundant Power Input & Relay Output Alarm
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm. If the primary power supply stops working the switch will start using the alternative power supply automatically and trigger a notification alarm to notify technicians in the event of power failure.




Resistant to Extreme Environments
The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to harsh temperatures ( -10°C~60°C / 14°F~140°F) and resistance to interference makes this device infallible in hardened environments around multiple types of machinery.




Specifications

Standards

IEEE 802.3

10BASE-T

IEEE 802.3u

100BASE-TX

IEEE 802.3ab

1000BASE-T

IEEE 802.3z

1000BASE-SX/LX

IEEE 802.3

Nway Auto-negotiation

IEEE 802.3x

Flow Control

IEEE 802.3af

Power over Ethernet

IEEE 802.3at

Power over Ethernet plus

IEEE 802.1p

Class of Service

Interface

Ports

4 x 10/100/1000BASE-T (PoE)

1 x 10/100/1000BASE-T (RJ45)

2x GbE SFP Slots

LED Panel

PWR, SFP, PoE, 1000, LNK/ACT

Power

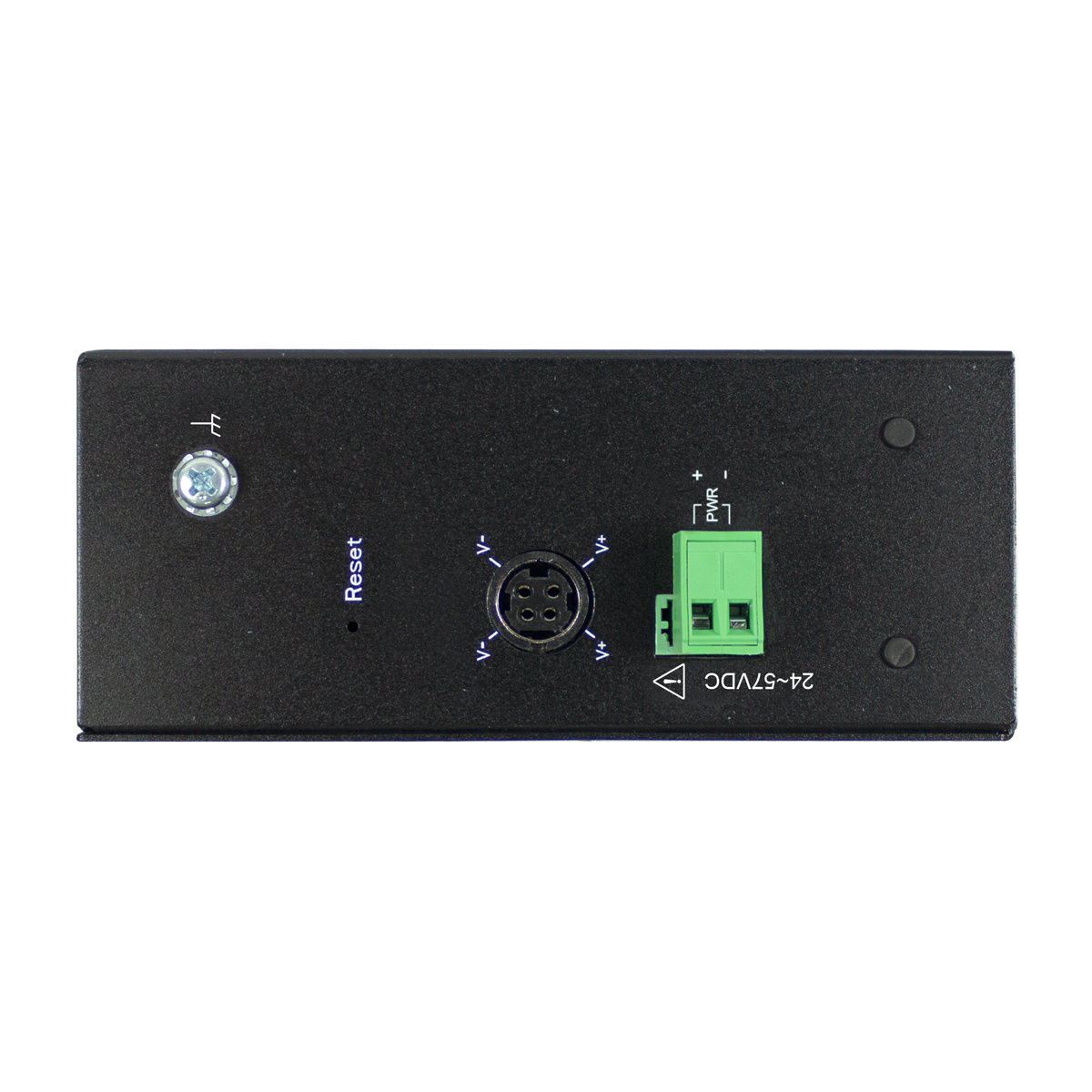

Input Voltage

Adapter inputs: 24V~57V DC

Terminal block inputs: 24V~57V DC

Connection

Teminal Block, Mini-DIN

Power Consumption

System: 14W

PoE Power Budget: 120W

Mechanical and Environment

Housing

Metal Case (IP30 protection)

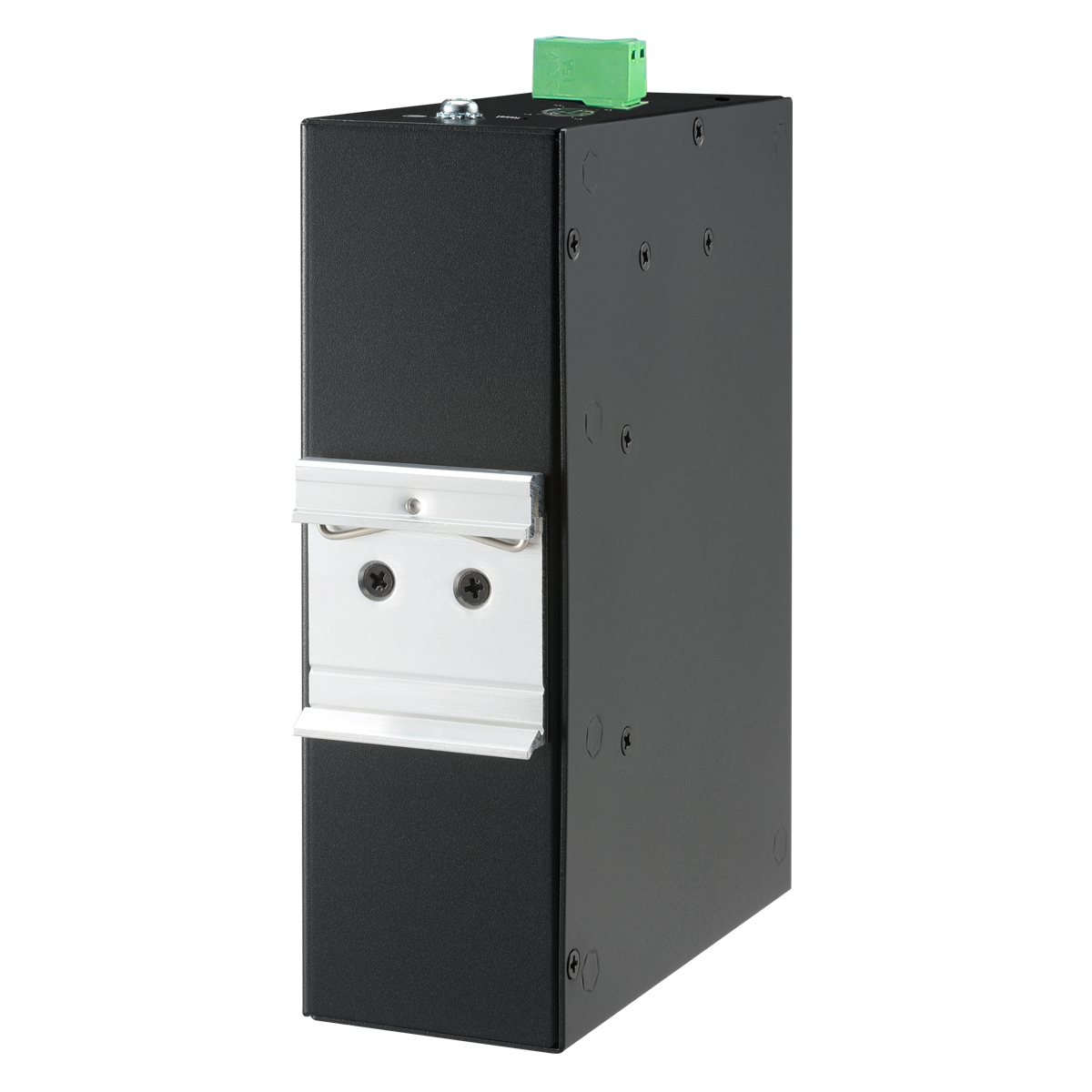

Mounting

DIN-Rail

Operating Temperature

-10°C~60°C

Storage Temperature

-40°C~85°C

Operating Humidity

5 to 95% RH (non-condensing)

Storage Humidity

5 to 95% RH (non-condensing)

Weight

780 g

Dimension (WxHxD)

50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)



Ordering Information

Model Description
IEN-8225P-24V Unmanaged 4 x 10/100/1000 PoE+ & 2 x 10/100/1000 RJ45 Switch



*Specifications subject to change without prior notice.

Download
File Name Release Date Download
IEN-8225P-24V Datasheet 2021-07-27
IEN-8225P-24V Photo 2021-07-27
