Woodpecker 8015 Series
Product Highlights
  • 8 x 10/100/1000 RJ45 ports and 2 x FX/GbE SFP uplink ports for long-distance connectivity to control devices and cascading (8015-8GT2GS-I)
  • Allows to enable port authentication to increase security
  • Optimizes network performance with Flow Control and QoS
  • A Wizard for three-minute and three-step installation guided process
  • Operating temperature -40℃~75℃ (-40°F~167°F) and metal housing
  • * The highest degree of temperature operation certified by UL is -40°C~70°C (-40°F~158°F).

    • -40°C-75°C
    • DIN Rail
    • ESD Protection
    • IP-40
    • Redundant Power
    • Surge Protection
    • LAMUNGAN
    • Topology Map
    • Dashboard
    • Wizard
    • UL
    • ROHS CE FC
    Overview

    Woodpecker 8015 Series is a lite-managed 8-port 10/100/1000 RJ45 downlink and 2-port FX/GbE multi-rate SFP uplink industrial-grade switch designed for real-time monitoring and communication between controllers and devices in automation settings. This switch is used with industrial devices like PLCs, HMIs, and legacy devices. It offers auto-negotiation on all its ports and Modbus TCP to aggregate devices easily in industrial ethernet applications.

    With a variety of management tools for configuration, it takes only three hours for technicians to learn how to use this equipment. The Wizard reduces installation to three steps and three minutes. The monitoring and management platform, Topology Map and Dashboard, give useful information in real-time to help users diagnose the network and troubleshoot without on-site technicians at all times. Rate limitation and QoS (Quality of Service) allow network optimization.

    This switch is built with industrial-grade components, enclosed in an metal case with high thermal conductivity to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits harsh industrial environments. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensure non-stop operations and issue alerts if power fails.



    Features

    LAMUNGAN - Monitoring and Management Platform
    Lamungan is Volktek’s embedded monitoring and management platform, a user-friendly interface consisted of a Wizard, a Topology Map, and a Dashboard for users to achieve more in less time to save resources and increase efficiency. It aggregates four tools concerning device deployment and installation, network performance, device monitoring, and network configuration.


    The Wizard - Three-step installation in three minutes
    When a new switch is connected the Wizard helps technicians to set up network access, security, and login information. This allows to quickly finish the installation of all devices to later continue with remote configuration once the network connection is settled. For users that are not familiarized with these types of devices, the Wizard can solve a lot of trouble.


    Topology Map - a Smart and Interactive Network at Glance
    For easy problem finding and troubleshooting, a bird-eye view of the network gives OT and IT users a comprehensive understanding. The Ethernet switch uses smart technology to discover third-party devices, their interface, and the link path status in a tri-color code (green, amber, and red). Furthermore, users can set up the map with customized icons and background images.


    Dashboard - Network Performance Visualization
    The dashboard lets users visualize switch CPU performance and data transmission rates in a simple interface to quickly detect device and network issues and give fast assistance.


    Third-Party Device Compatibility and Speed Adaptability
    The multi-rate ports of this device are enabled to transmit data at different Ethernet speeds of 10/100/1000 Mbps on copper and 100/1000 Mbps on fiber and adapt to the Ethernet speed of third-party devices based on their requirements. When legacy devices are connected to the switch, it auto-negotiates with the device, reducing the need for additional adaptors to adjust to a tight budget.


    Optimized Network Performance
    The transmission of data to the control center or to other devices in real-time is crucial and assured with the help of the QoS (Quality of Service) and Flow Control features, the switch prioritizes data transmission and improves performance.


    Power Failure Protection: Redundant Power Input & Relay Output Alarm
    To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm. If the primary power supply stops working the switch will start using the alternative power supply automatically and trigger a notification alarm to notify technicians in the event of power failure.


    Resistant to Extreme Environments
    The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to harsh temperatures (-40°C~75°C / -40°F~167°F) and resistance to interference makes this device infallible in hardened environments around multiple types of machinery.


    Reliable IP40-Rated Industrial Switch for Critical Environments
    The IP40-rated industrial switch is designed to deliver dependable performance in critical environments where protection against solid particles is essential. Its durable enclosure shields the device from dust, debris, and electromagnetic interference, ensuring smooth operation in high-demand settings such as factories, control rooms, and mission-critical facilities. The switch provides robust protection against objects larger than 1 millimeter. With features like wide temperature tolerance, this industrial switch is ideal for maintaining uninterrupted data transmission in challenging, high-stakes environments




    Specifications

    Standards

    IEEE 802.3

    10BASE-T

    IEEE 802.3u

    100BASE-TX

    IEEE 802.3ab

    1000BASE-T

    IEEE 802.3u (Woodpecker 8015-8GT2GS-I)

    100BASE-FX

    IEEE 802.3z (Woodpecker 8015-8GT2GS-I)

    1000BASE-SX/LX

    IEEE 802.3

    Nway Auto-negotiation

    IEEE 802.3x

    Flow Control

    IEEE 802.3az

    Energy Efficient Ethernet (EEE)

    IEEE 802.1AB

    LLDP

    IEEE 802.1D

    STP

    IEEE 802.1w

    RSTP

    IEEE 802.1p

    Class of Service

    IEEE 802.1Q

    VLAN Tagging

    IEEE 802.1X

    Port Authentication

    Interface

    Ports

    8015-8GT-I : 8x10/100/1000BASE-T

    8015-8GT2GS-I : 8x10/100/1000BASE-T & 2x100FX/GbE SFP

    DIP Switch

    Primary/Redundant Power Voltage Drop Alarm setting

    LED Panel

    8015-8GT-I : PWR, RPS, ALM, 1000, LNK/ACT

    8015-8GT2GS-I : PWR, RPS, ALM, SFP, 1000, LNK/ACT

    Power

    Input Voltage

    Primary inputs: 24~48V DC

    Redundant inputs: 24~48V DC

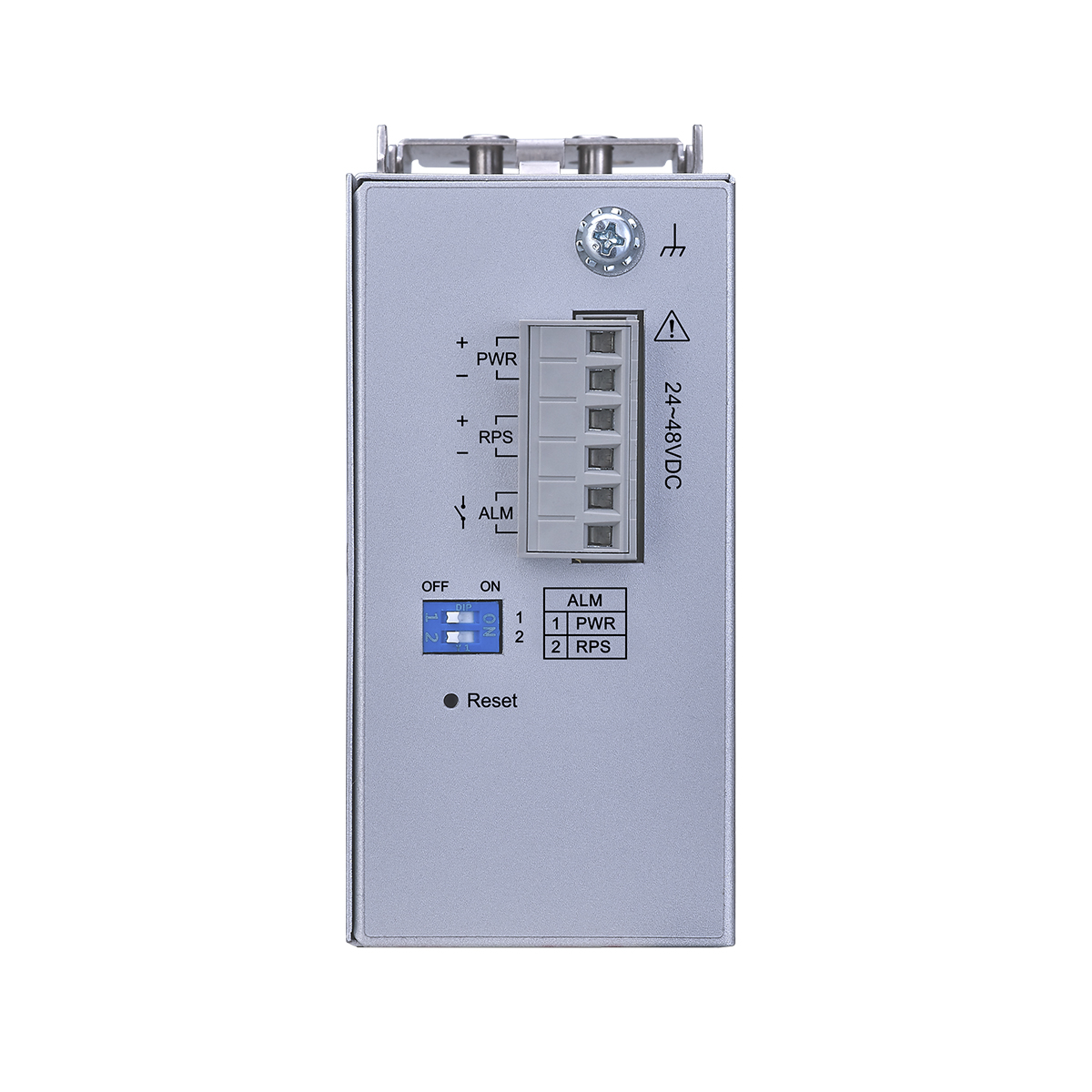

    Connection

    Teminal Block

    Power Consumption

    System: 8015-8GT2GS-I: Max. 11W, 24V DC @ 0.4A

    8015-8GT-I: Max. 10W, 24V DC @ 0.35A

    Alarm Relay

    One relay output, 1 A @ 24V DC

    Mechanical and Environment

    Housing

    Metal

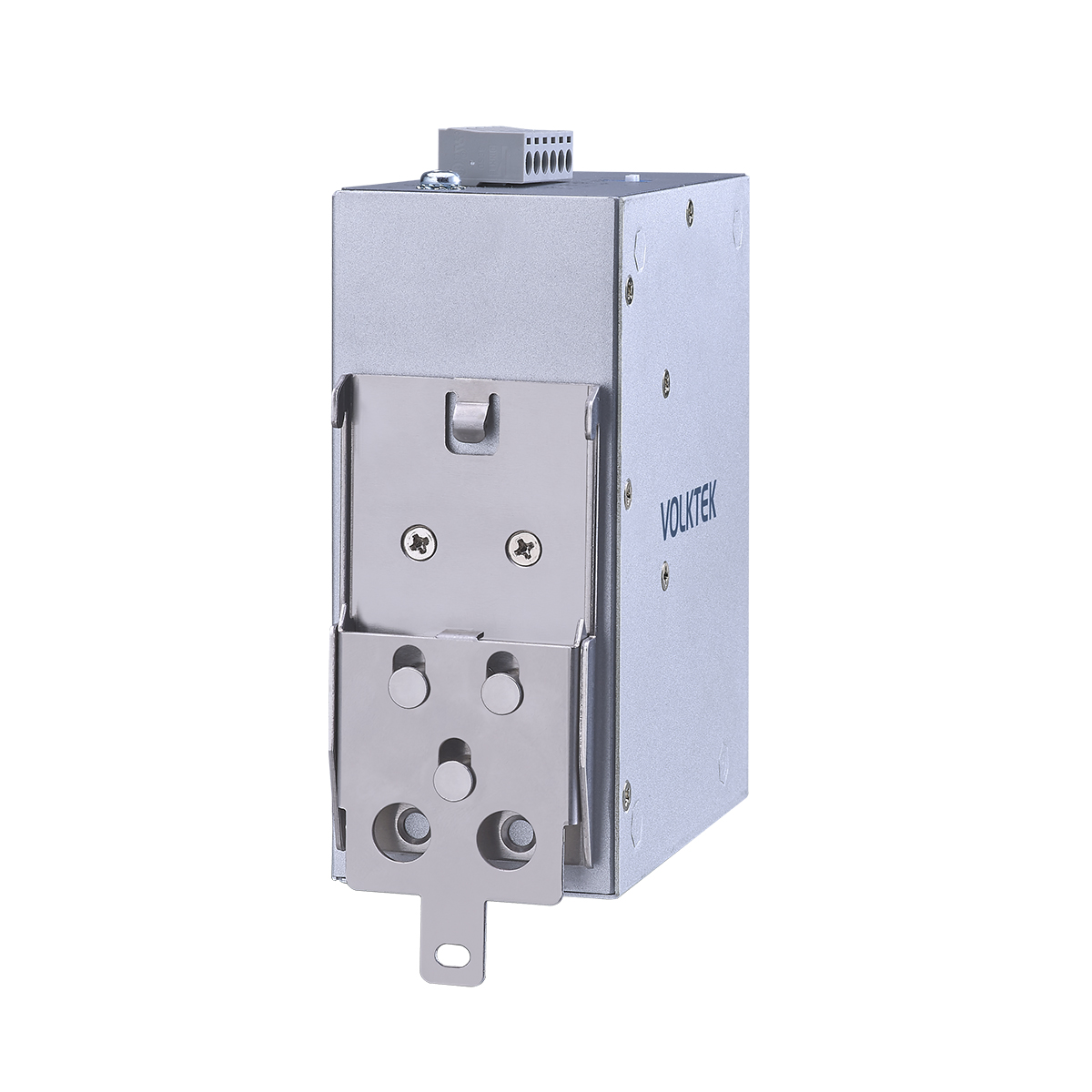

    Mounting

    DIN-Rail

    Operating Temperature

    -40°C~75°C (-40°F ~167°F)

    Storage Temperature

    -40°C~85°C (-40°F~185°F)

    Operating Humidity

    5 to 95% RH (non-condensing)

    Storage Humidity

    5 to 95% RH (non-condensing)

    Weight

    550 g (1.10 lb)

    Dimension (WxHxD)

    50 x 116 x 100 mm (1.97 x 4.57 x 3.93 in)



    Ordering Information

    Model Description
    Woodpecker 8015-8GT-I Lite Managed 8 x 10/100/1000 RJ45 Switch
    Woodpecker 8015-8GT2GS-I Lite Managed 8 x 10/100/1000 RJ45 Switch



    *Specifications subject to change without prior notice.
