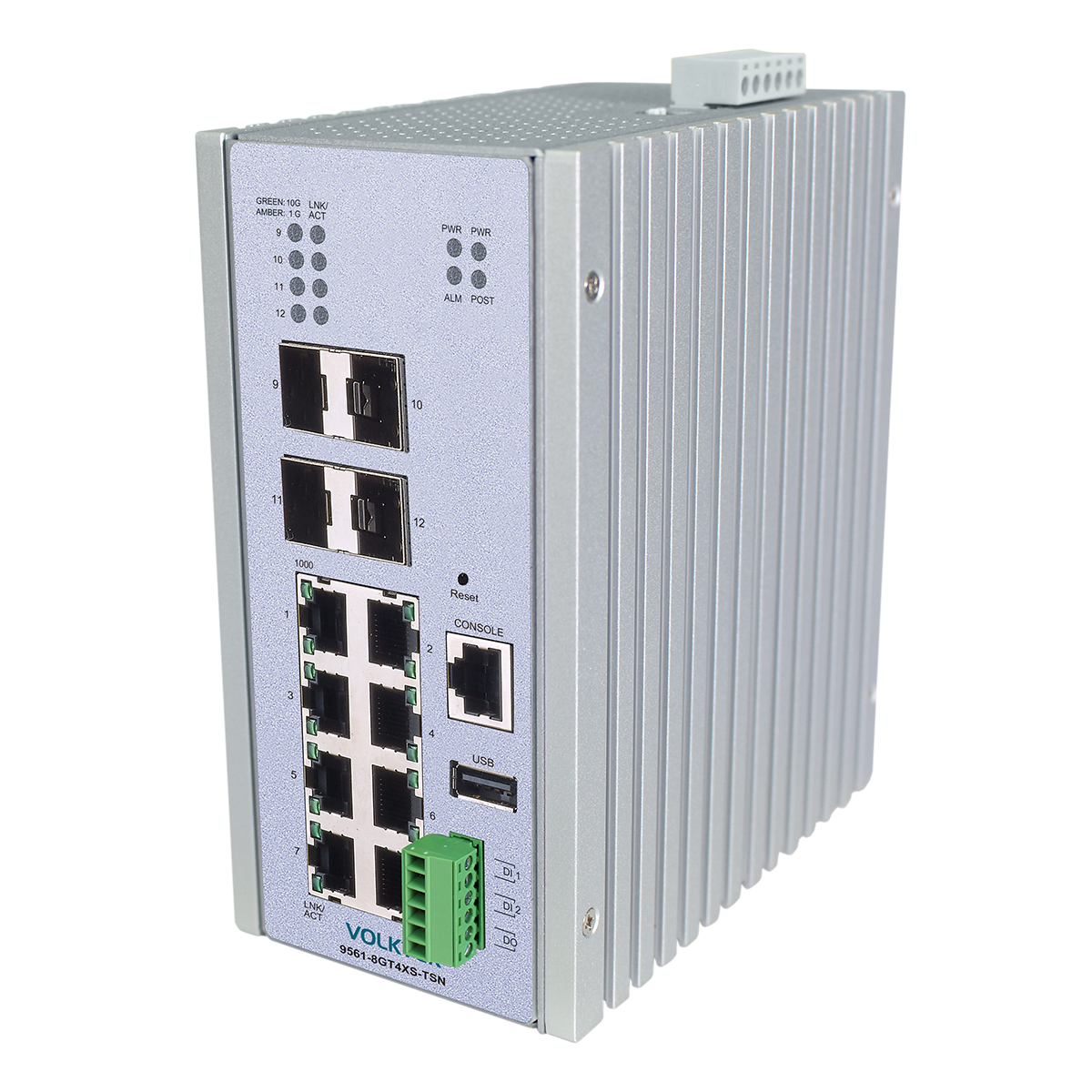

The 9561-8GT4XS-TSN industrial network switch is designed to deliver high performance and reliability in demanding industrial environments. It features a versatile interface with 8x 10/100/1000Mbps RJ45 ports and 4x FX/GbE/10G SFP+ ports, ensuring robust and flexible connectivity options. The switch supports precision timing protocols such as IEEE 1588 and 802.1AS-Rev, making it ideal for applications requiring synchronized operations.
Advanced features like G.8032 and full TSN support, along with TSN Domain Protection (802.1Qci, 802.1Qav, 802.1Qbv, 802.1Qbu/802.1br), enhance network reliability and security. High traffic availability is maintained through standards like 802.1CB, IEC-62439-2 2016 MRP, and HSR/PRP, while time distribution capabilities include 802.1AS-2020 (gPTP), IEEE1588:2019, and 1PPS In/Out. Efficient power management is ensured with 802.3az (EEE) and Wake-on-LAN (WoL) capabilities.
Precision Timing and TSN Support
Fully compliant with Time-Sensitive Networking (TSN) protocols, including IEEE 802.1Qci, 802.1Qav, 802.1Qbv, 802.1Qbu, 802.1BR, IEEE 802.1CB, 802.1AS-2020 gPTP, and IEEE 1588v2, this switch enables deterministic data transmission, precise time synchronization, and robust traffic shaping to meet automation and control system needs.
Advanced Redundancy and Reliability
Implements Ethernet ring protection protocols including G.8032, IEC-62439-2 MRP, HSR, PRP to guarantee continuous network uptime and fast recovery from failures.
Comprehensive Network Security
Includes IEEE 802.1X port-based authentication, TACACS, ACL, DHCP Snooping, ARP Inspection, BPDU Guard, Root Guard, IP Source Guard, and MAC Anti-spoofing to prevent unauthorized access and safeguard network integrity.
Advanced Traffic Control and Quality of Service
Equipped with VLAN (IEEE 802.1Q), QinQ, IGMP snooping/filtering, MVLAN, QoS, storm control, rate limiting, loop detection, port isolation, SPAN/RSPAN/VSPAN, and inter-VLAN routing, enabling granular bandwidth control and smooth multimedia/data transmission.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3ae
10GBASE-SR/LR/ER
IEEE 802.3 Nway
Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.3ad
Link Aggregation
IEEE 802.3az
Energy Efficient Ethernet (EEE)
IEEE 802.1AB
LLDP
IEEE 802.1ad
QinQ
IEEE 802.1D
STP
IEEE 802.1w
RSTP
IEEE 802.1s
MSTP
IEEE 802.1p
Class of service
IEEE 802.1Q
VLAN Tagging
IEEE 802.1X
Network Access Control
IEEE 1588v2
PTP
IEEE 802.3ah
EFM
IEEE 802.3ag
CFM
ITU-TY.1731 Ethernet
OAM
IEEE 802.1AS
gPTP
IEEE 802.1Qci
PSFP
IEEE 802.1Qav
CBS
IEEE 802.1Qbv
TAS
IEEE 802.1Qbu
FP
IEEE 802.1br
BPE
IEEE 802.1CB
FRER
Interface
Ports
4 x FX/GbE/10G SFP+ Slots
1 x RS232 Console Port
1 x USB Port
2 x pairs Dry Contact Digital Inputs (DI)
1 x Alarm Relay Digital output (DO)
LED Panel
PWR, RPS, ALM, POST, 1000, 10G, LNK/ACT
Power
Input Voltage
Primary inputs: 12~48VDC
Redundant Inputs: 12~48VDC
Power Consumption
System: TBD
Mechanical and Environment
Housing
Aluminum (IP30 Protection)
Operating Temperature
-40˚C~70˚C (-40°F~158°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
TBD
Dimension (WxHxD)
80 x 160 x 140.3 mm (3.15 x 6.30 x 5.52 in)
Ordering Information
| Model | Description |
|---|---|
| 9561-8GT4XS-TSN | Layer 3 Managed 8 x 10/100/1000 RJ45 & 4 x FX/GbE/10G SFP+ Industrial TSN Switch |
*Specifications subject to change without prior notice.
