* The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F), DNV is (Class D) -25°C~70°C (-13°F~158°F)
* The nominal voltage of 24VDC for DNV type approval is specified
* The switch enclosure is designed to meet IP40 ingress protection, while the device is DNV type approved with an ingress protection rating of IP20
INS-8005EM is an unmanaged industrial Fast Ethernet switch with 5 auto-negotiation 10/100 Mbps downlink ports to expand Ethernet networks in factory floors and for high demanding environments with complex networks and limited space.
The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets, prevent the loss of data during communication, and stable transmission; like flow and storm control and VLAN Passthru. It prioritizes industrial protocols for industrial applications, like Ethernet/IP, PROFINET, and GOOSE packets. Additionally, it offers per-port and 802.1p Tag Quality of Service to ensure the delivery of high priority data.
This networking device is built with industrial grade components to protect it from hazards like vibration, shock, free fall, interference, and extreme temperatures that make it resistant to harsh industrial environments.
It's Accident Proof
Engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current in the event of an accident.
Redundant Power System
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.
Simple Installation and Compact Size
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.
Comprehensive QoS
Supports IEEE 802.1p Quality of Service (QoS) which enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications without any delay even during a burst of high traffic.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.1p
Class of Service
Interface
Ports
5 x 10/100BASE-TX (RJ45)
LED Panel
PWR, 100, LNK/ACT
Power
Input Voltage
12~48VDC (Nominal 24VDC for marine use)
Connector
Terminal block
Max Power Consumption
3W
Reverse Polarity Protection
Present
Over Load Protection
Present
Mechanical and Environment
Housing
Aluminum (IP40 Protection)
Mounting
DIN-Rail
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
183.4 g (0.4 lb)

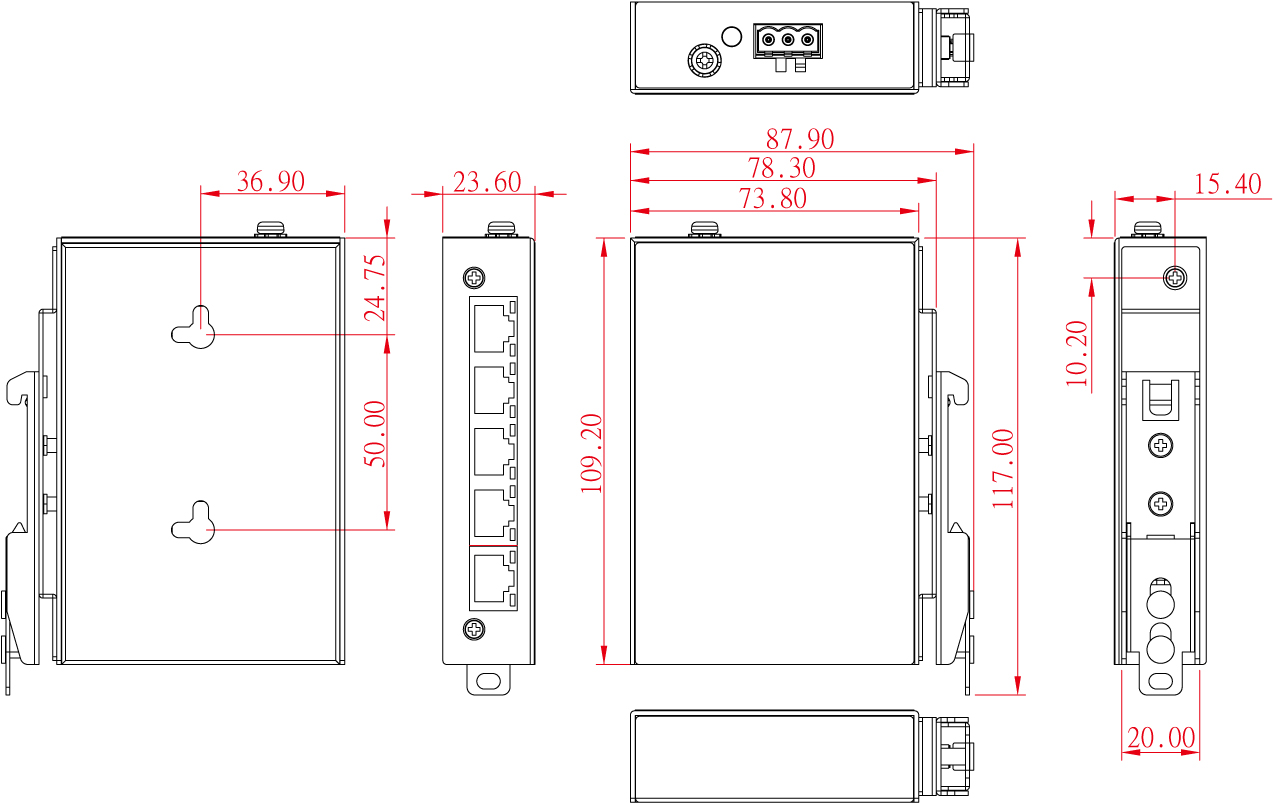

Dimension (WxHxD)
23.6 x 109.2 x 73.8 mm (0.93 x 4.3 x 2.90 in)
Ordering Information
| Model | Description |
|---|---|
| INS-8005EM | Premium Unmanaged 5 x 10/100 RJ45 Industrial Switch, DNV Marine Approval |
*Specifications are subject to change without prior notice.
