INS-802E
Product Highlights
  • 8 x 10/100 RJ45 & 2 x FX/GbE SFP ports for Fast Ethernet speed application devices with Premium features
  • Auto-negotiation ports allow operation without extra device installation
  • Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control
  • Prevents packet loss with VLAN Pass-through by forwarding VLAN packets
  • Industrial QoS (EIP (EtherNet/IP), PROFINET, and GOOSE packets), per-port priority, 802.1p Tag
  • Operating temperatures -40℃~75℃ (-40°F~167°F) and aluminum housing

* The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F).

  • -40°C-75°C
  • Auto Negotiation
  • DIN Rail
  • ESD Protection
  • IP Code30
  • Ports Priority
  • QoS
  • Redundant Power
  • Surge Protection
  • Wall Mount
  • UL
  • ROHS CE FC
Overview

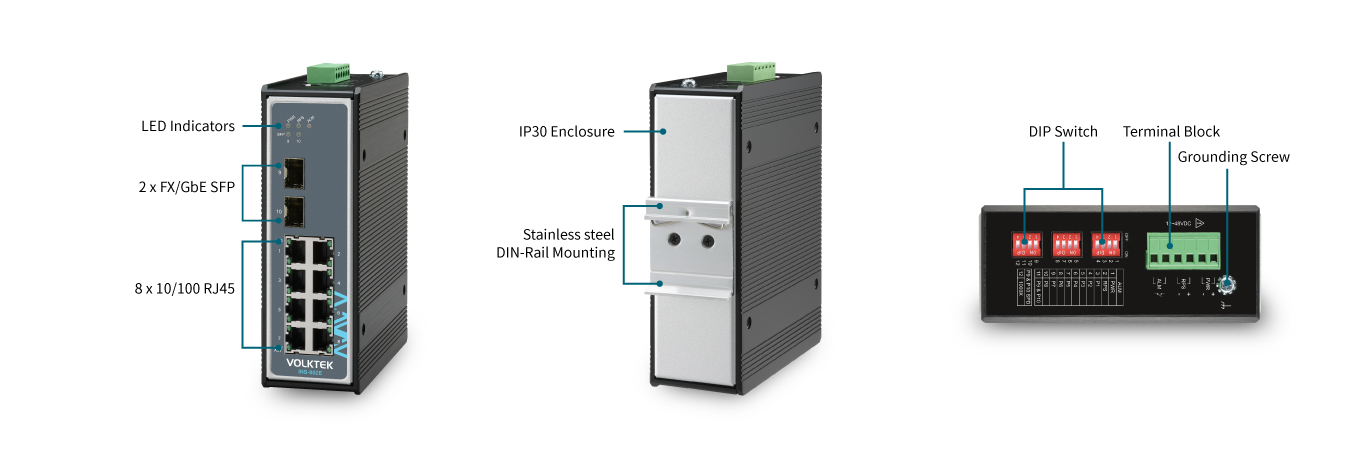

The INS-802E is an unmanaged industrial switch equipped with 8-port 10/100Base-TX, and 2-port FX/GbE SFP, dual fiber uplinks and redundant DC power inputs, an ideal solution for deployment in multiple high-speed automation systems. With its dry-contact smart alarm, the INS-802E initiates an alarm function that can be seen and heard on the factory floor in the event of any malfunction. The INS-802E operates in wide temperatures ranging from -40°C to 75°C and absorbs higher than average degrees of vibration and shock, making it perfectly suitable and safe choice for harsh industrial environments.

This switch is built with industrial-grade components, enclosed in an IP40 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~80℃ (-40°F~176°F) it suits extreme industrial environments.



Features


It's Accident Proof
Engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current in the event of an accident.

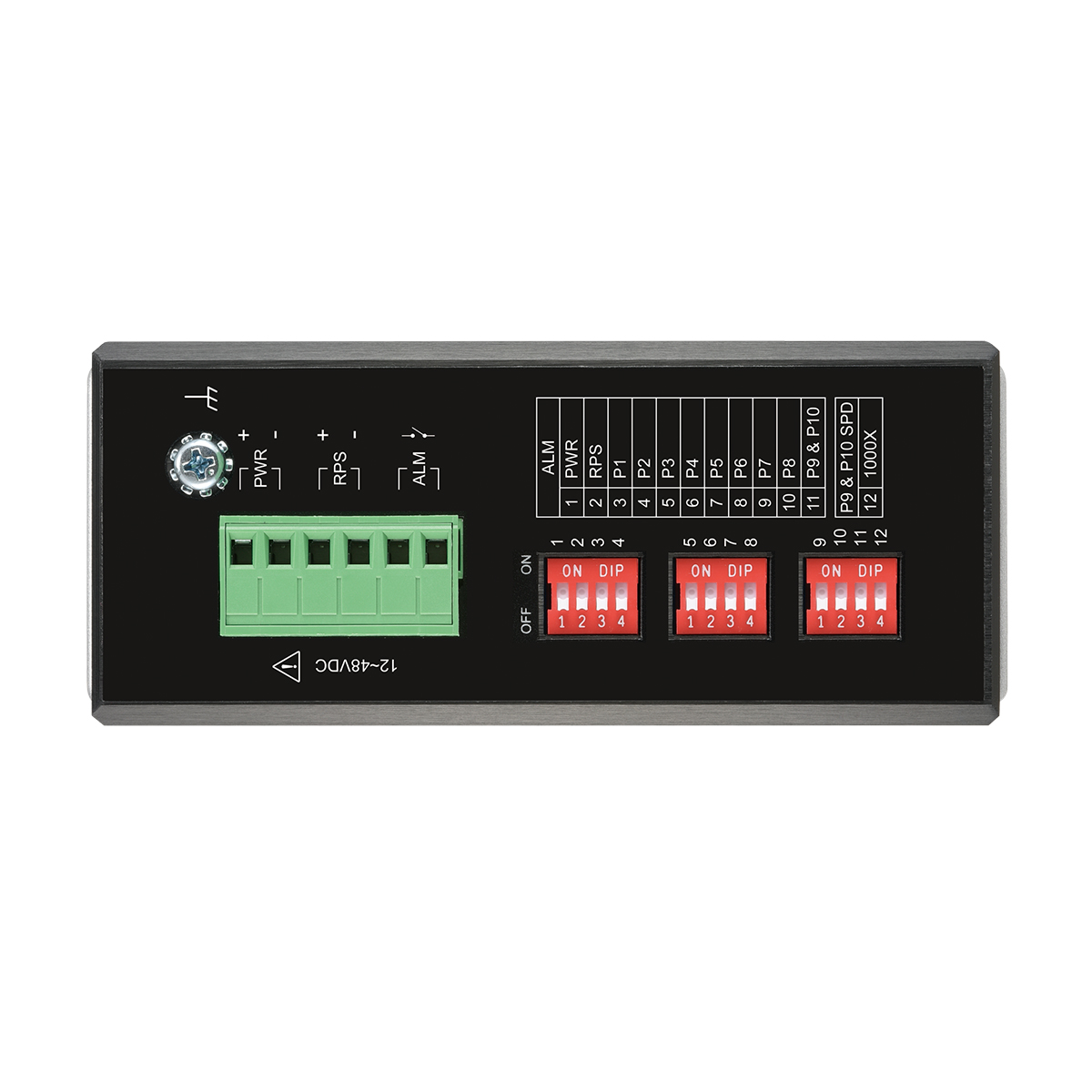

Redundant Power System
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.



Simple Installation and Compact Size
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.



Comprehensive QoS
Supports IEEE 802.1p Quality of Service (QoS) which enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications without any delay even during a burst of high traffic.






Specifications

Standards

IEEE 802.3

10Base-T

IEEE 802.3u

100Base-TX/FX

IEEE 802.3z

1000Base-SX/LX

IEEE 802.3

Nway Auto-negotiation

IEEE 802.3x

Flow Control

IEEE802.1p

Class of Service

IEEE 802.3

10BASE-T

Power

Input Voltage

Primary inputs: 12 ~ 48VDC

Redundant inputs: 12 ~ 48VDC

Connection

Terminal block

Power Input Polarity Protection

Present

Power Voltage Drop Alarm

Present

Power Consumption

12W (Max)

Alarm Relay

One relay output, 1 A @ 24V DC

ESD Protection

Present

Mechanical and Environment

Housing

Aluminum (IP30 protection)

Mounting

DIN-Rail

Operating Temperature

-40°C to 75°C

Storage Temperature

-40°C to 85°C

Operating Humidity

5 to 95% RH (non-condensing)

Storage Humidity

5 to 95% RH (non-condensing)

Weight

780g

Dimension (WxHxD)

50 x 161.5 x 119.9 mm (1.97 x 6.36 x 4.72 inch)



Ordering Information

Model Description
INS-802E Premium Unmanaged 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch



*Specifications subject to change without prior notice.
