Are you prepared for a networking solution that transcends the ordinary? Look no further than our 9065 Series, meticulously crafted to excel in the most demanding of industrial environments. Whether you operate in the realms of smart cities, surveillance, or transportation, this is the switch you’ve long awaited.

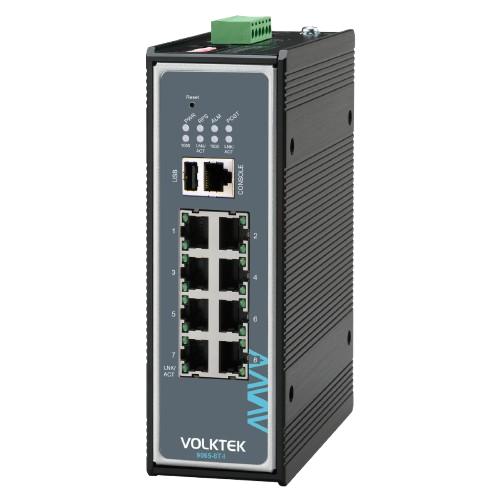

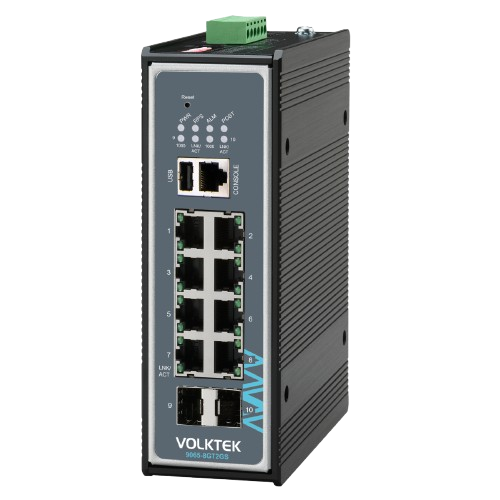

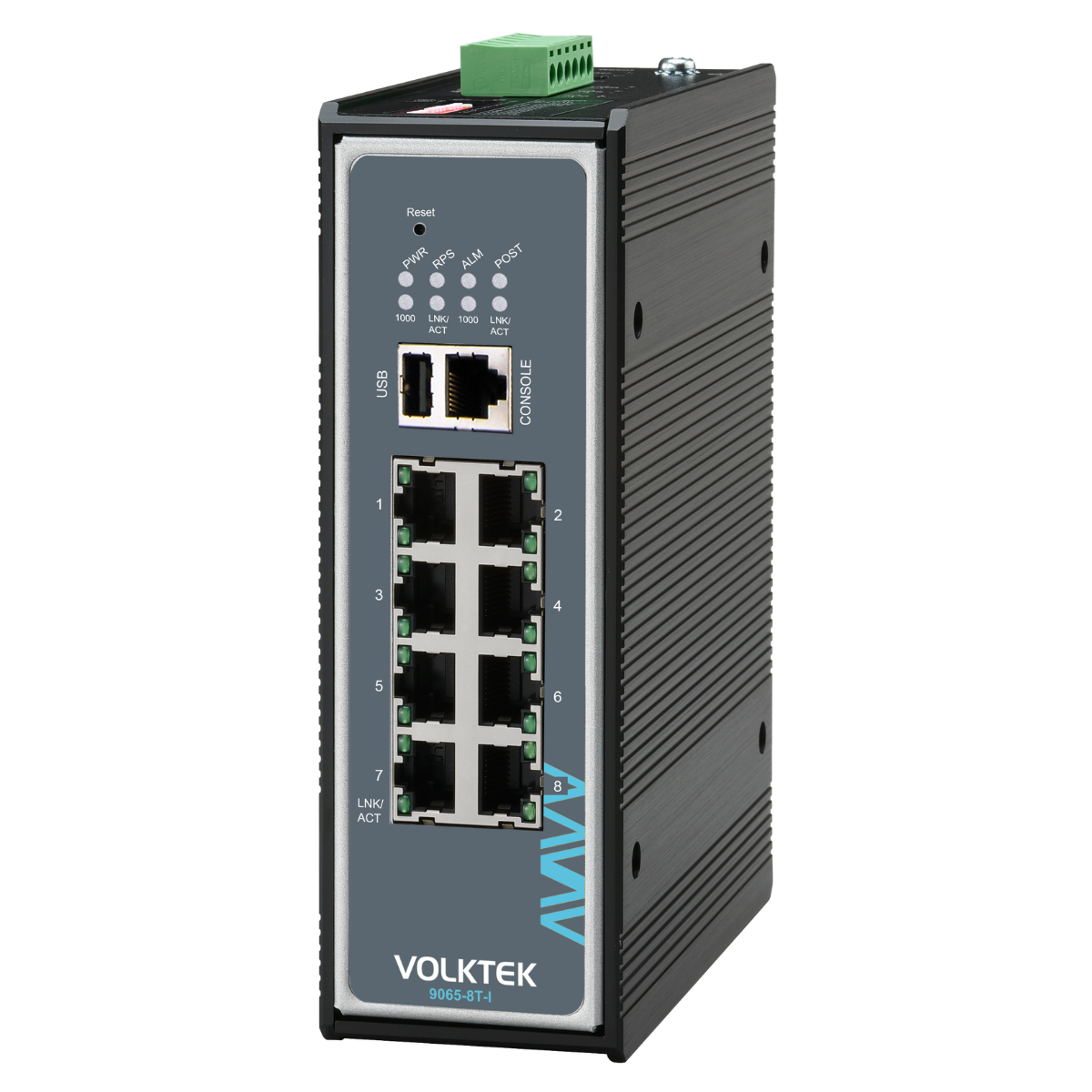

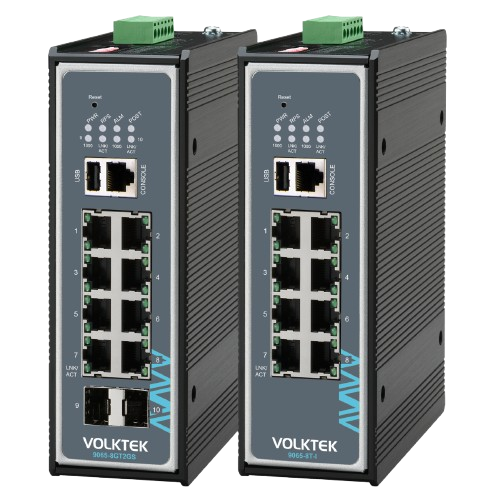

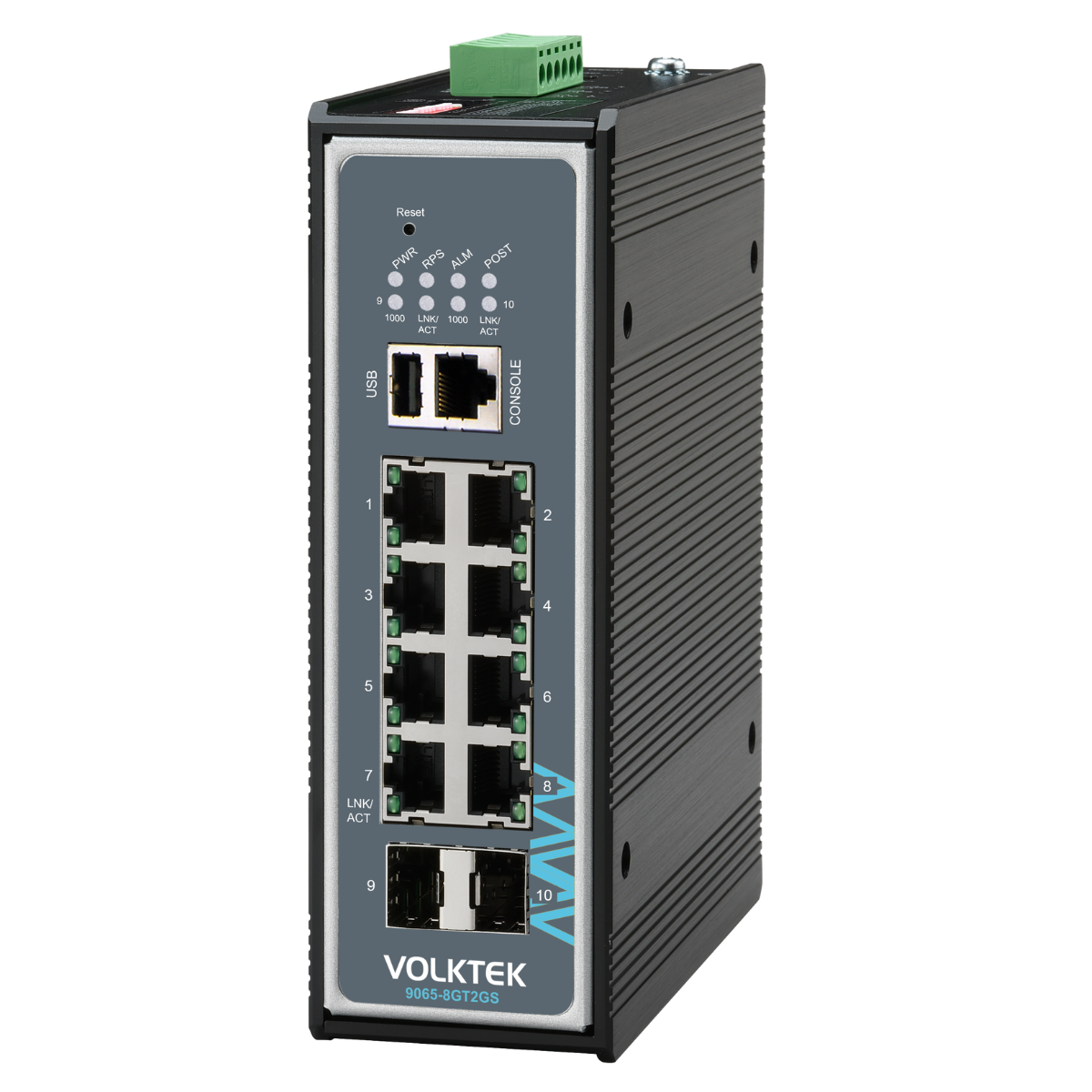

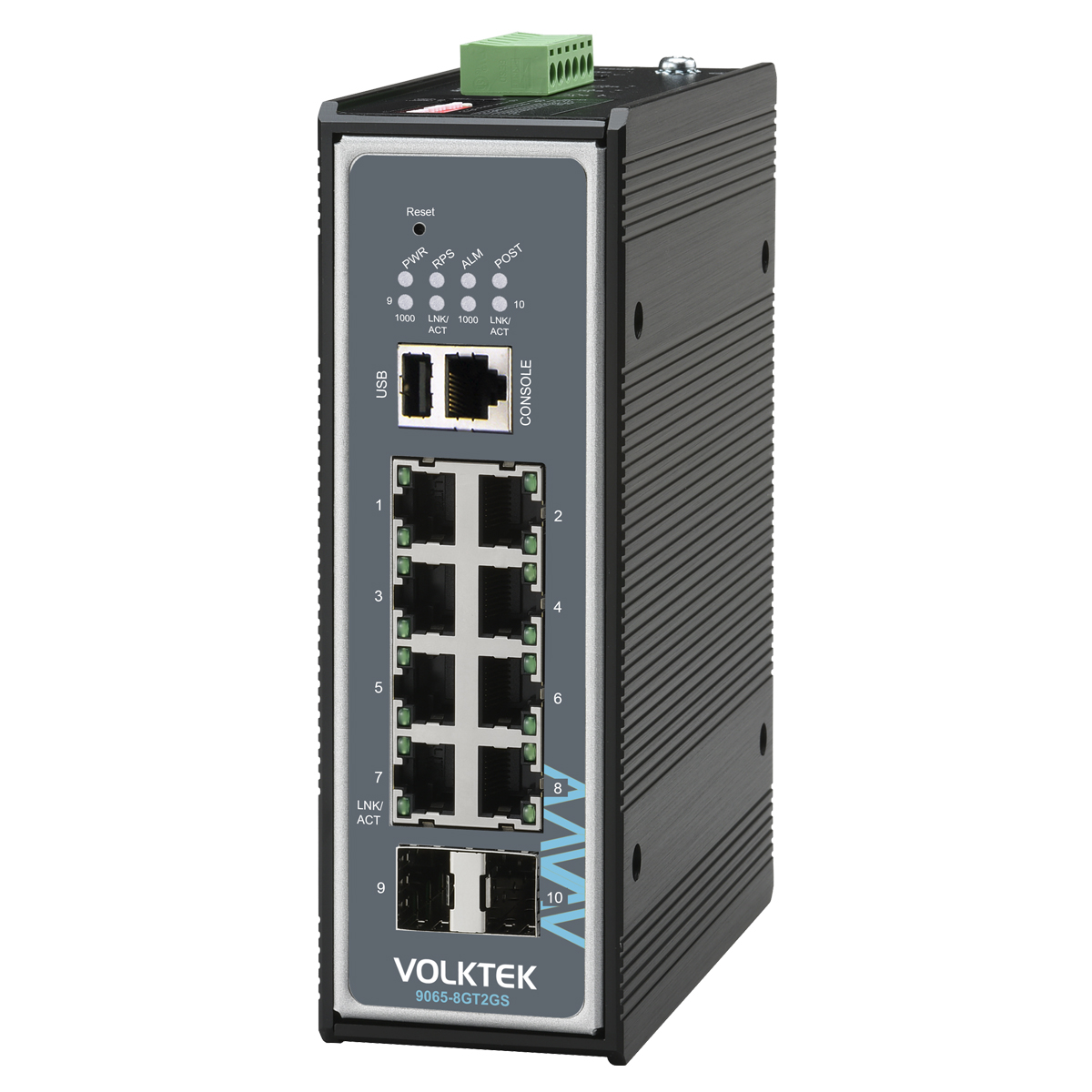

The 9065 Series arrives in two formidable variations – firstly, the 9065-8T-I, a Managed 8 x 10/100 RJ45 Industrial Switch, and secondly, the 9065-8T2GS-I, a Managed 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch.
These switches are meticulously engineered for excellence, delivering top-tier performance that surpasses all expectations. Encased in a rugged, hardened shell and fortified with components capable of enduring extreme levels of vibration and shock, these switches are designed to ensure uninterrupted operation even under the harshest conditions.
Crafted to thrive in extreme climates, they function flawlessly across a wide temperature range, from a bone-chilling -40°C to a scorching 75°C. Regardless of the environment, the 9065 Series ensures the seamless operation of your network.
Each port in the 9065 Series boasts two LEDs, providing instant feedback on link status, transmission speed, and link/activity status. Moreover, featuring a relay output for event alarms, you’ll perpetually remain well-informed. In the event of a power failure, a built-in LED alarm activates, ensuring administrators are promptly notified.
Yet, that’s not the entirety of it. The 9065 Series transcends being merely a switch; it is a tailored solution meticulously designed specifically for the smart city, surveillance, and transportation markets. Whether you’re elevating urban infrastructure, reinforcing security, or optimizing transportation networks, our switches are the key to unlocking your success.
SNMP Remote Management
SNMP is used for collecting information from, and configuring, network devices on an Internet Protocol (IP) network. Volktek Managed switch provides an SNMP agent that works with third-party SNMP management software to monitor the device status.
Recovery Timer for Loop Detection
Instead of being re-opened manually, a configurable timer is provided to automatically recover a port blocked by the loop detection function.
RMON
Remote Network Monitoring is a network analysis protocol, designed to aid the network administrator in gathering data on network operations such as traffic data both historical and real-time, and configurable data based on variables for time, highest or lowest traffic, users, and more.
ACL
The L2/L3/L4 Access Control List (ACL) function allows you to create filter rules for determining whether the switch will forward specific packets (based on information contained in the headers) for security or control reasons. These criteria cover multiple protocol layers (including MAC and IP) and port numbers. It enables network operators to flexibly control the traffic (like blocking traffic from P2P software or throwing away packets destined for unused port numbers, which might be hacker attacks).
Dual Fiber Ports
It’s useful connectivity to save the cost for fiber cable deployment. With this dual fiber link support, users can acquire the benefits of link redundancy with ring-aware switches, like Volktek management switches.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3 Nway
Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.1D
STP
IEEE 802.1w
RSTP
IEEE 802.1s
MSTP
IEEE 802.1Q
VLAN Tagging
IEEE 802.1v
Protocol-based VLAN
IEEE 802.1ad
QinQ
IEEE 802.1p
Class of service
IEEE 802.3ad
Link Aggregation
IEEE 802.1ab
LLDP
ITU-T G.8032
ERPS
IEEE 802.1X
Port Authentication
IEEE 1588v2
PTP
IEEE 802.3az
Energy Efficient Ethernet (EEE)

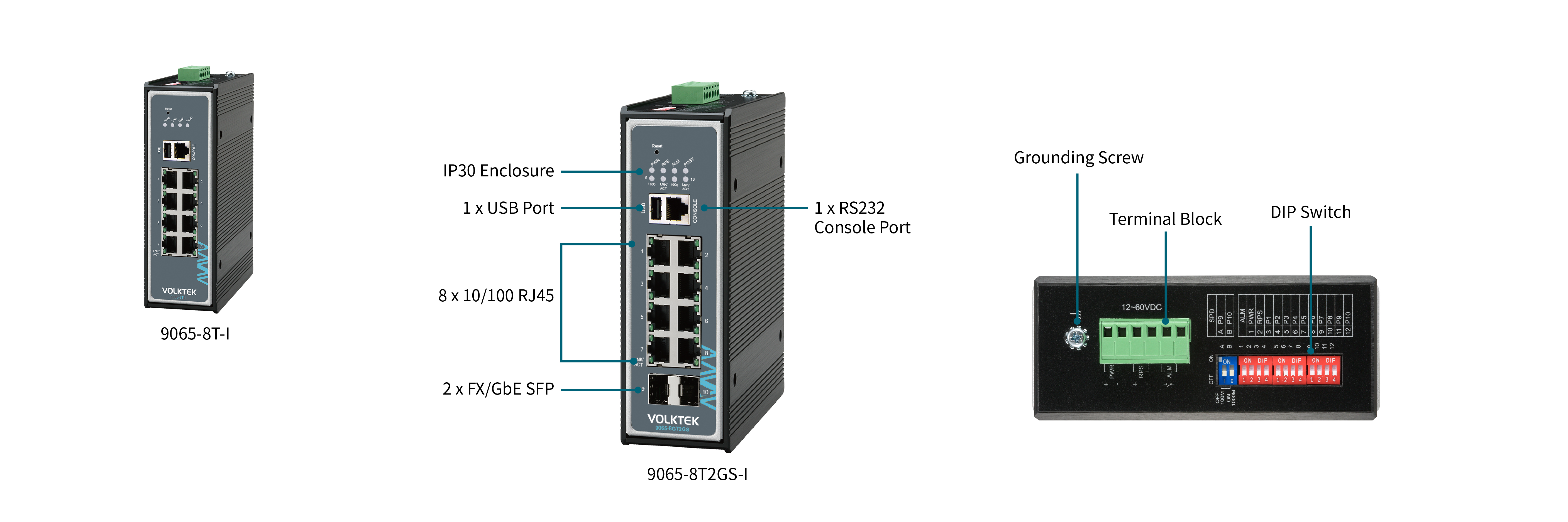

Interface
Ports
8 x 10/100 RJ45
2 x FX/GbE SFP
1 x RS232 Console Port
1 x USB Port

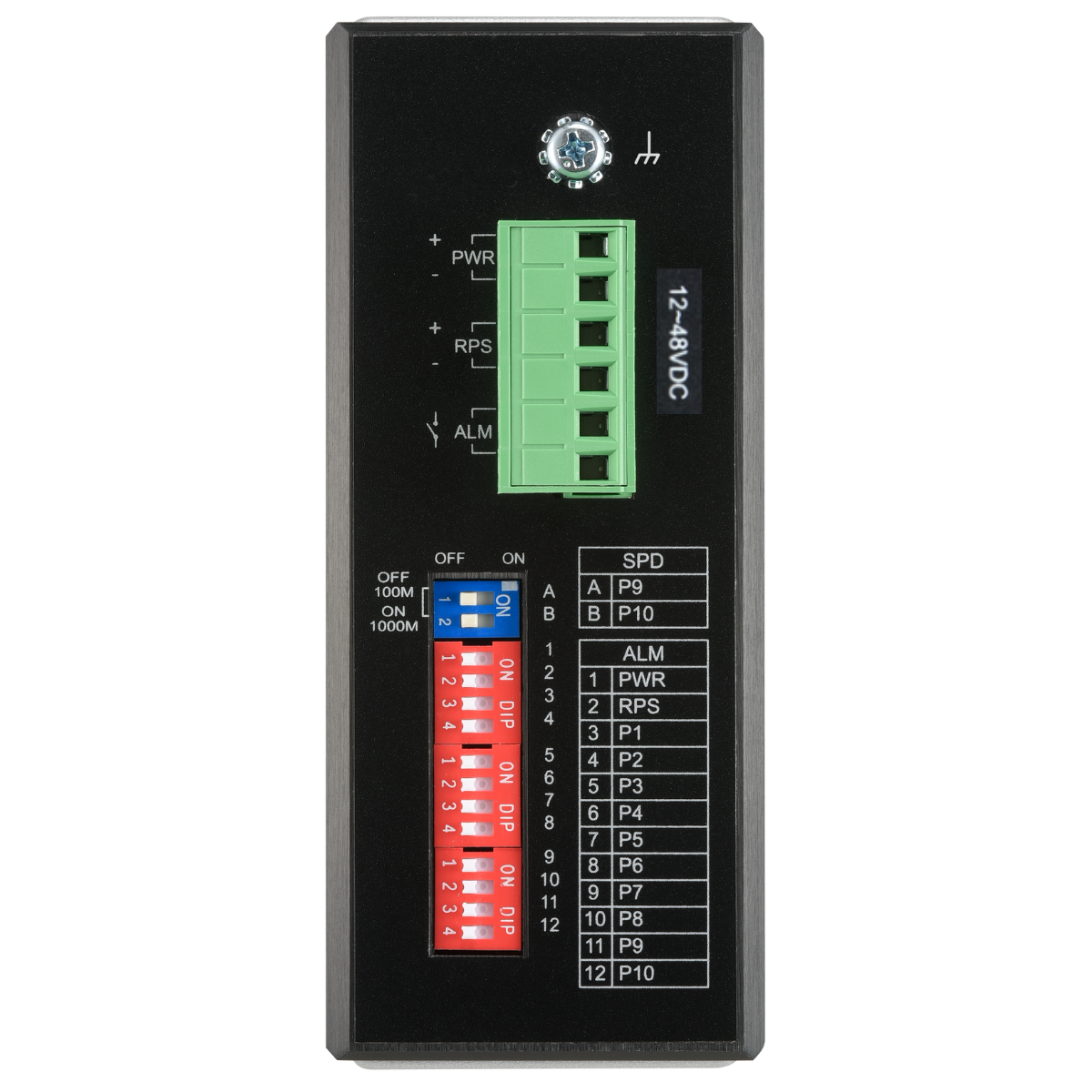

DIP Switch
Primary/Redundant Power Voltage Drop Alarm setting
LED Panel
PWR, RPS, ALM, POST, 100, LNK/ACT
Ports
8 x 10/100 RJ45 2 x FX/GbE SFP 1 x RS232 Console Port 1 x USB Port
Power
Power Consumption
18W
Input Voltage
Primary inputs: 12-48V DC Redundant inputs: 12-48V DC
Mechanical and Environment
Housing
Aluminum (IP30 Protection)
Mounting
DIN-Rail
Operating Temperature
-40°C~70°C (-40°F~158°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
970g (2.2lb)
Dimension (W x H x D)
50 x 161.5 x 120mm (1.97 x 6.36 x 4.72in)
Housing
Aluminum (IP30 Protection)
Ordering Information
| Model | Description |
|---|---|
| Woodpecker 9065-8T-I | Managed 8x 10/100 RJ45 Industrial Switch, USB support |
| Woodpecker 9065-8T2GS-I | Managed 8x 10/100 RJ45 & 2x FX/GbE SFP Industrial Switch, USB support |
*Specifications subject to change without prior notice.
